NULLPAD Series 2.0 Barebones Numpad Kit | PRE-ORDER

NULLPAD Series 2.0 Barebones Numpad Kit | PRE-ORDER

$169.00
$169.00
Sale Sold out
Wood Finish

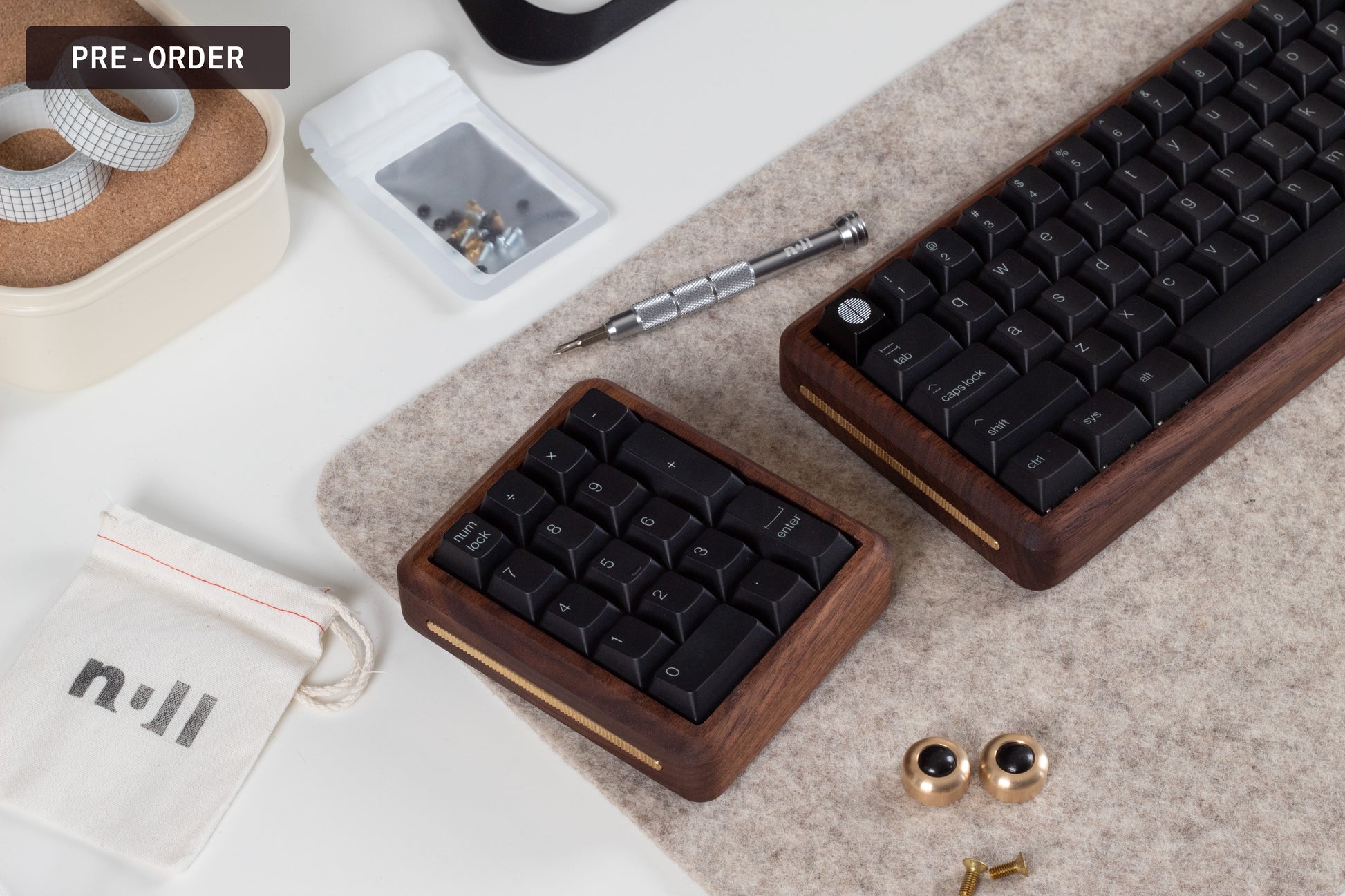

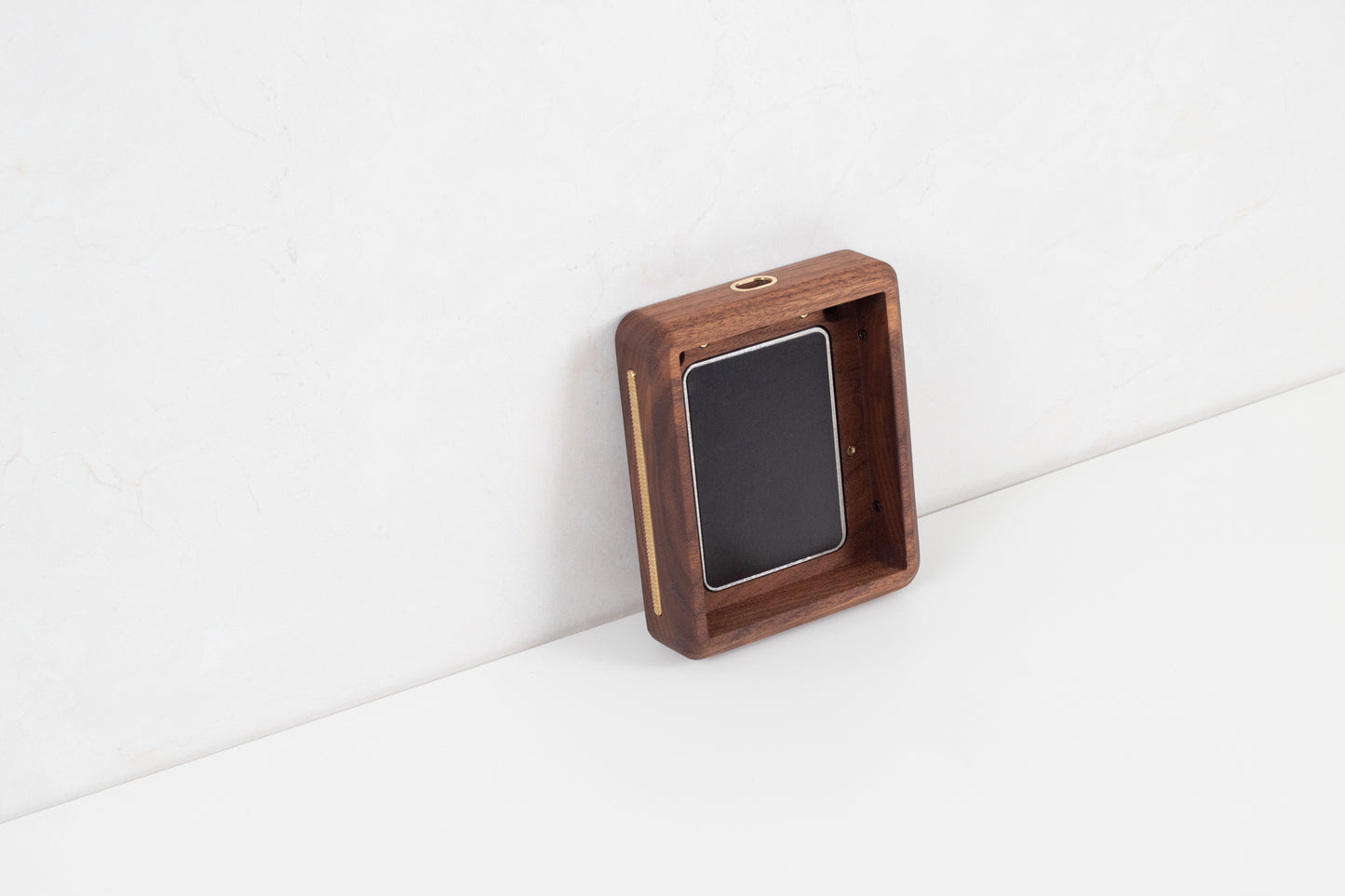

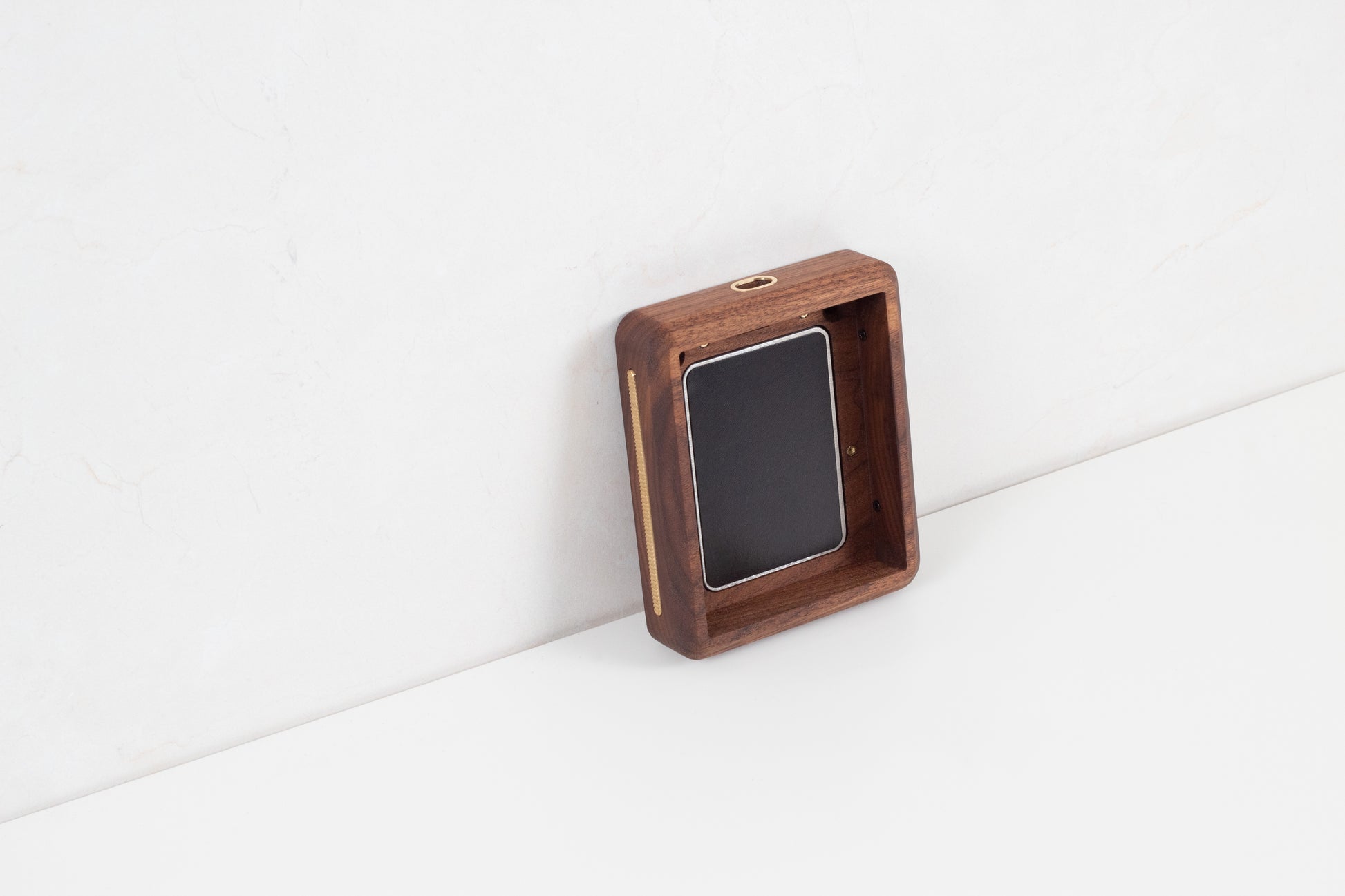

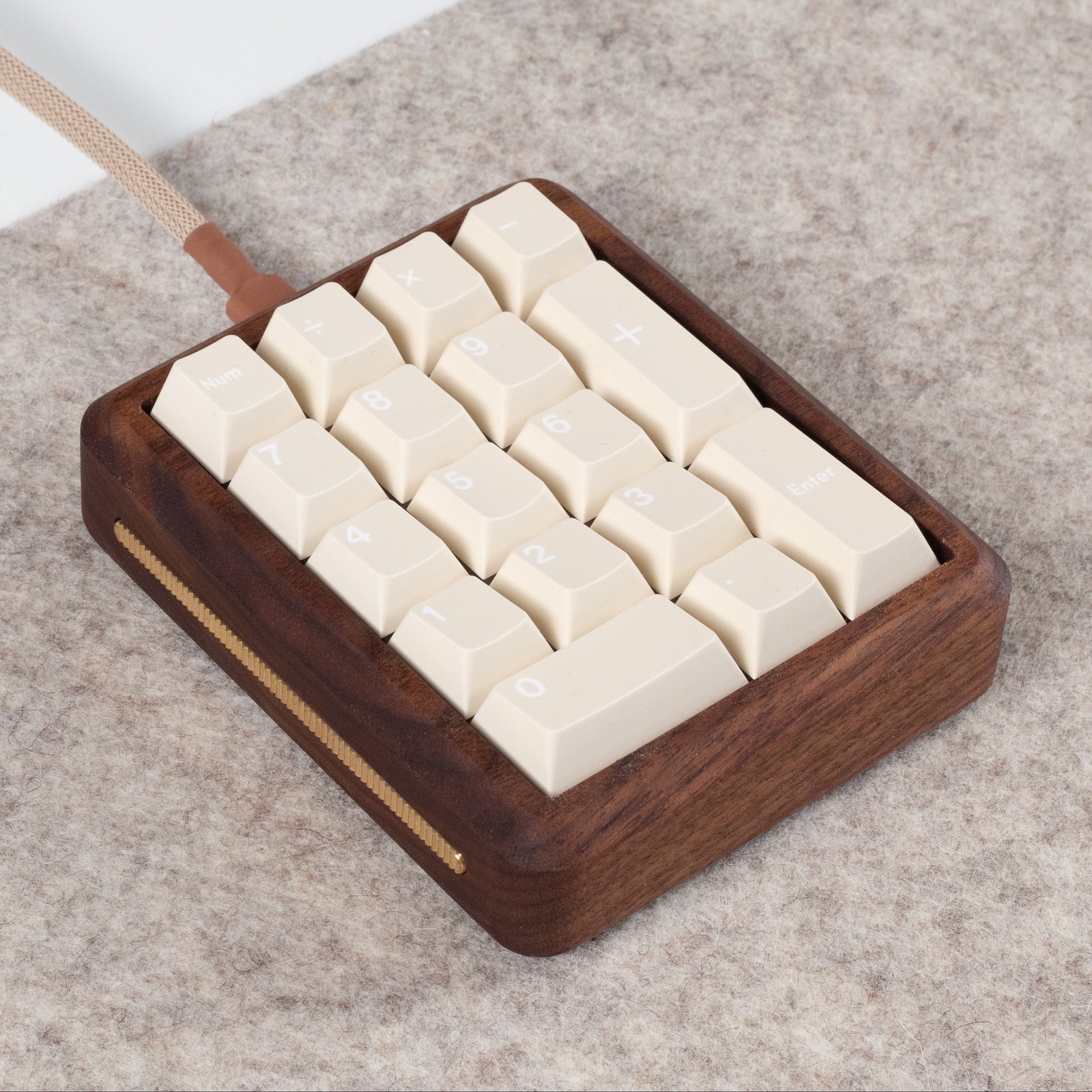

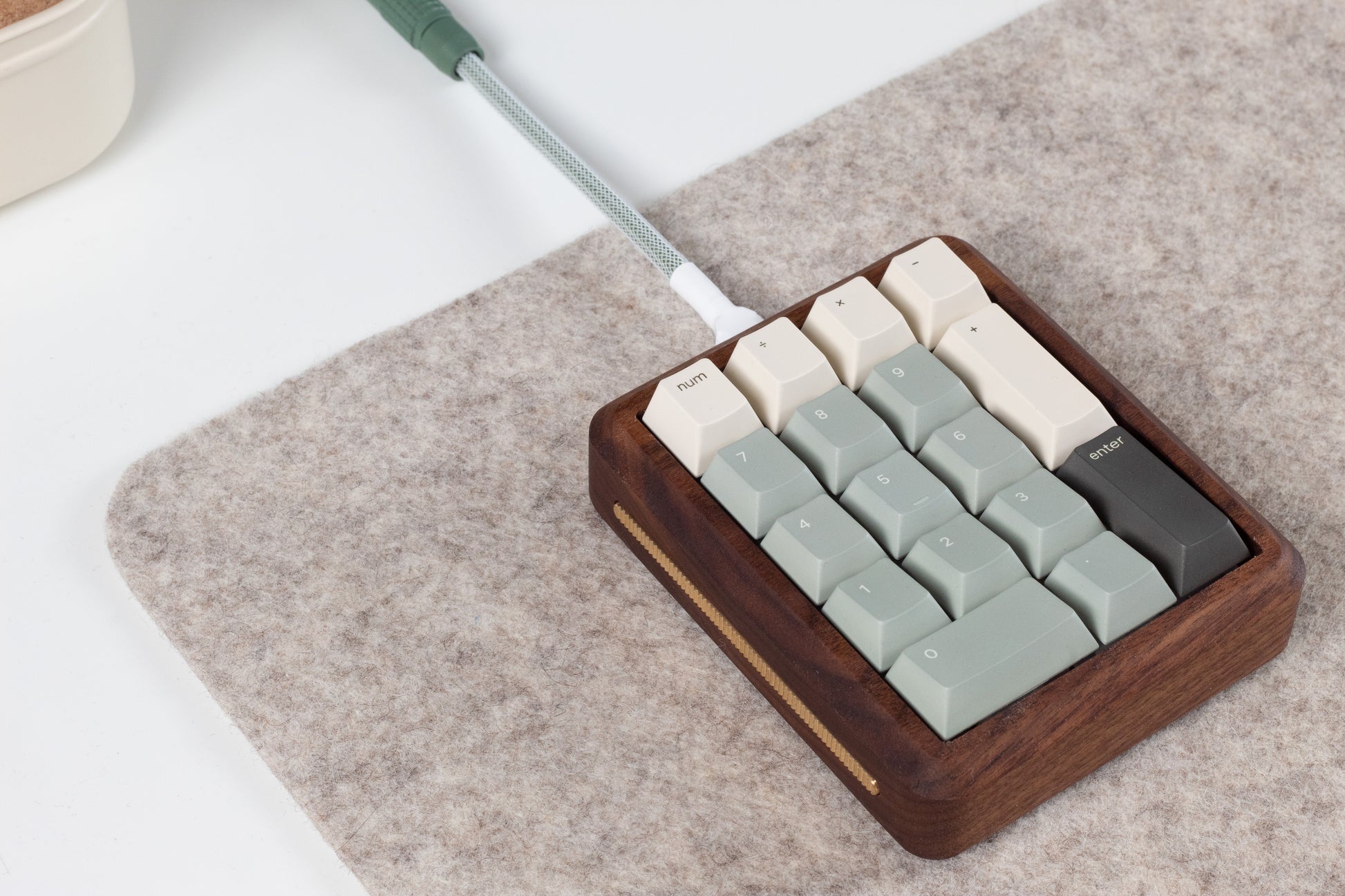

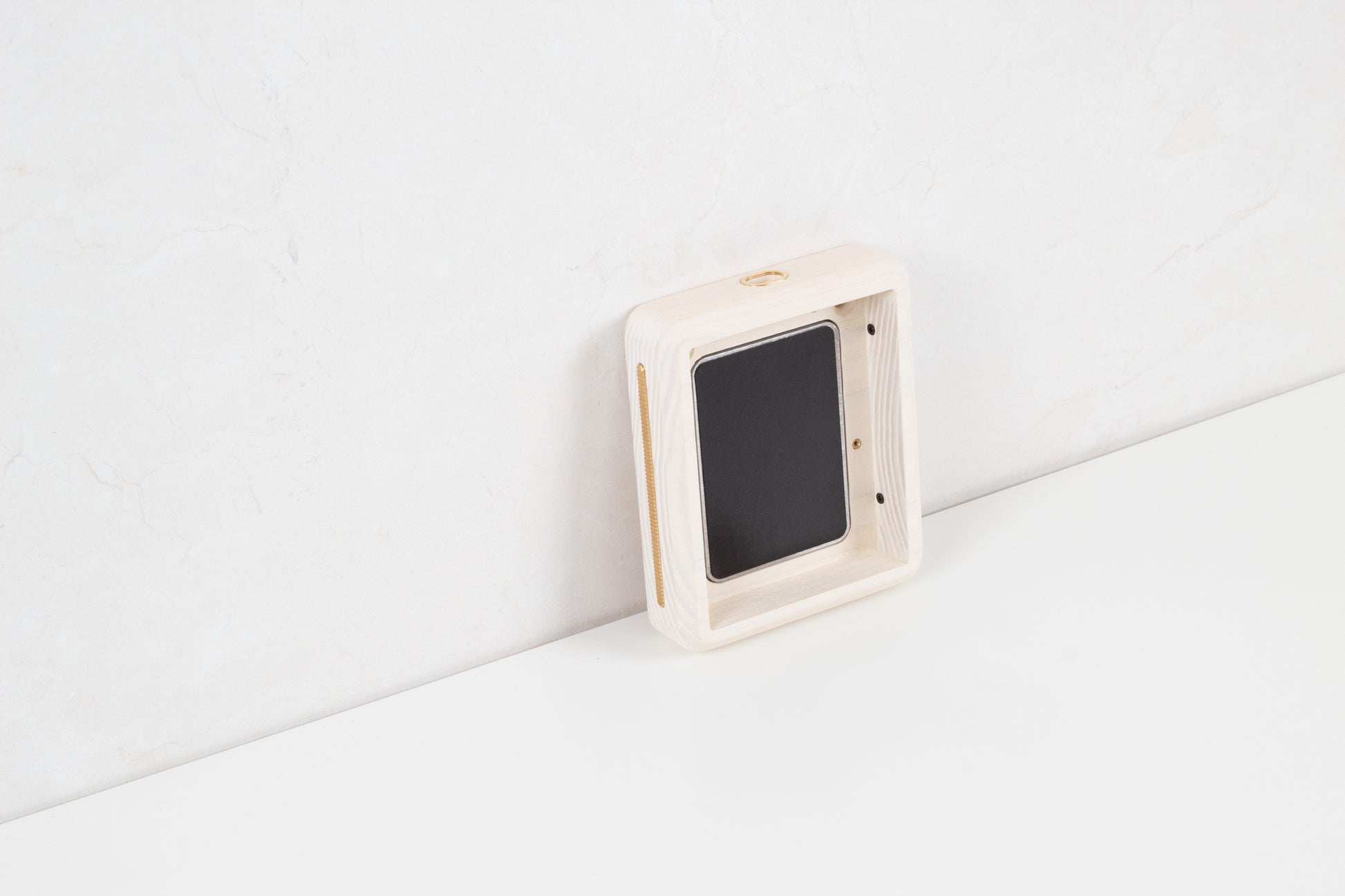

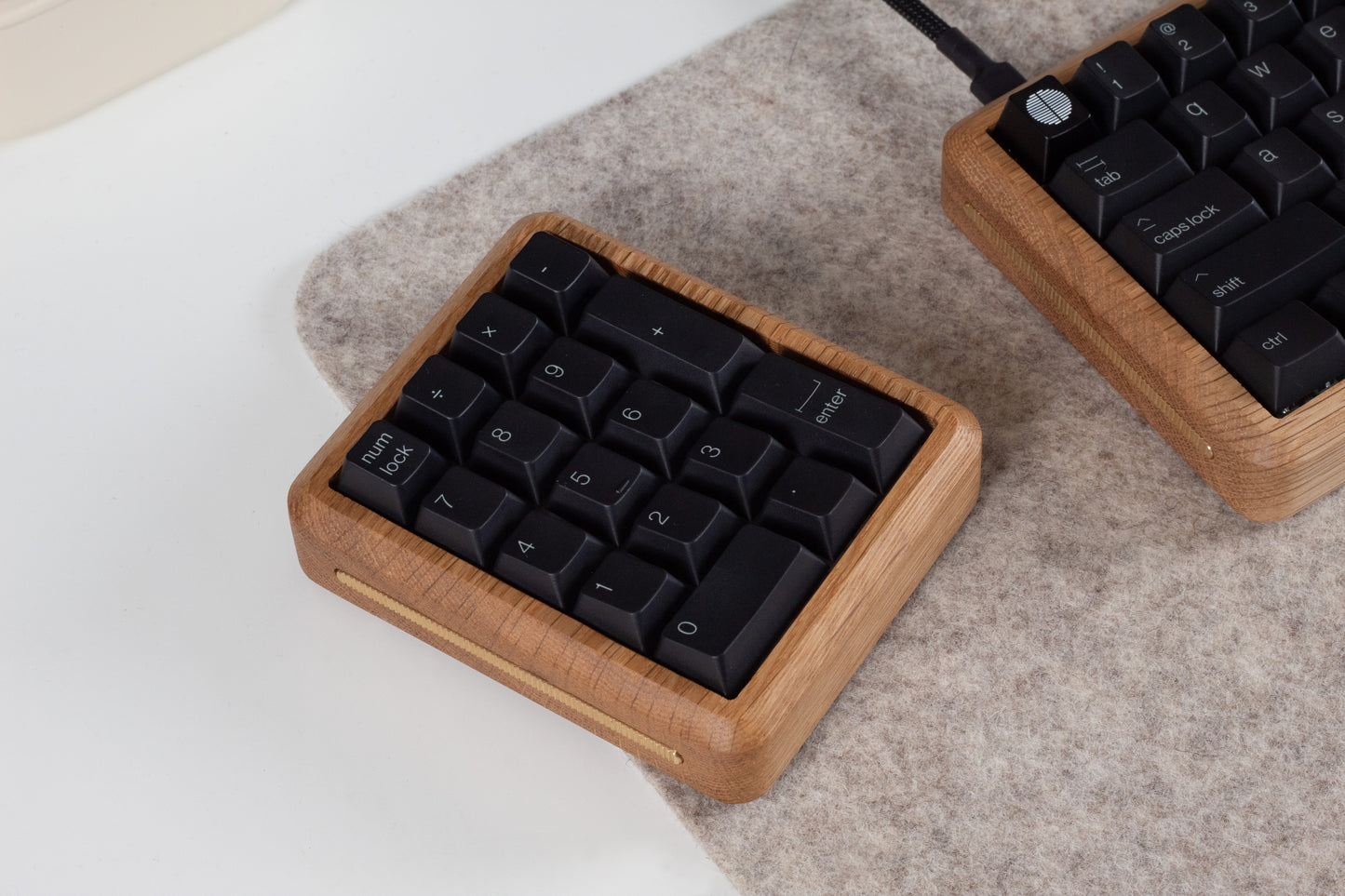

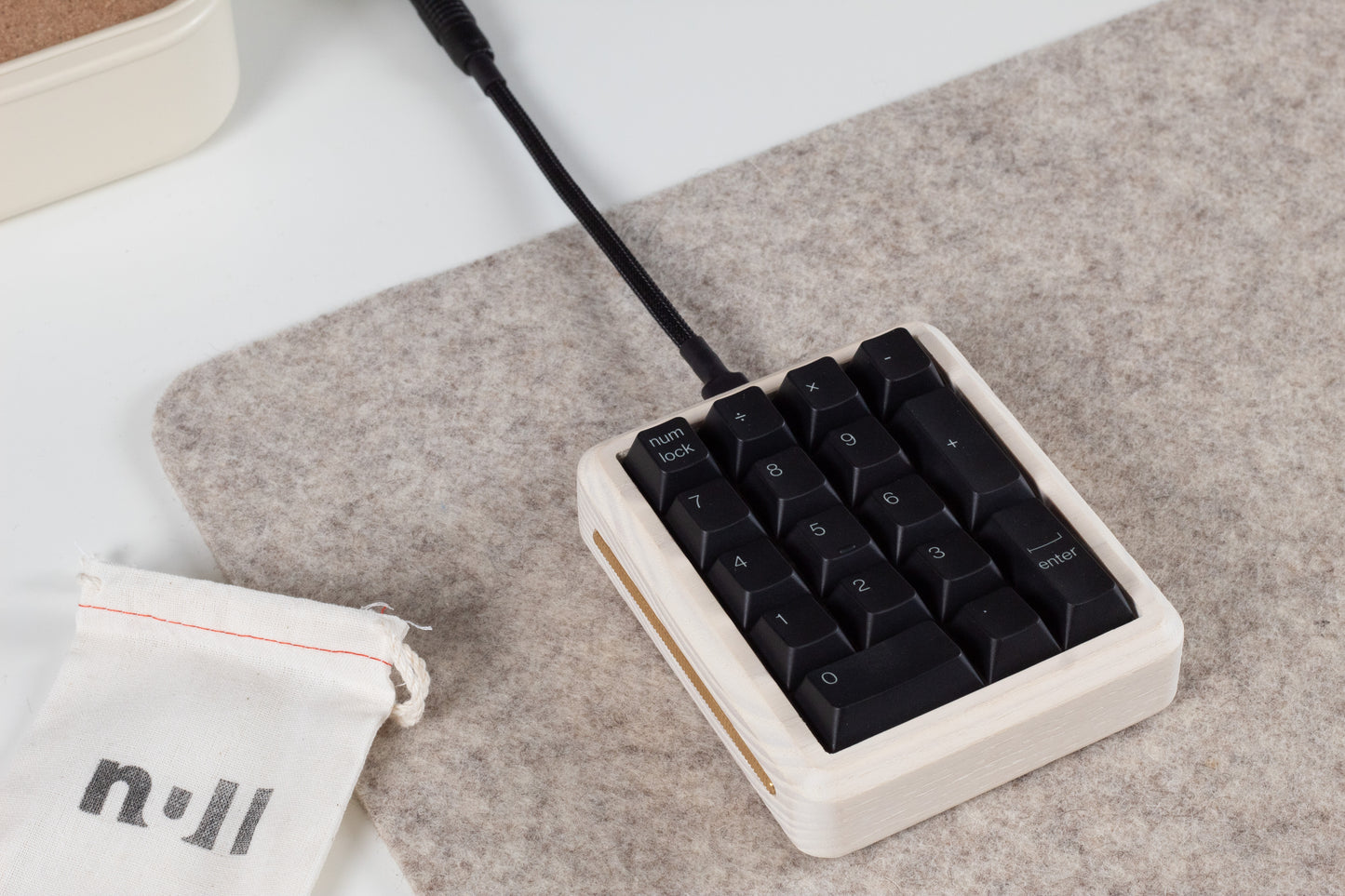

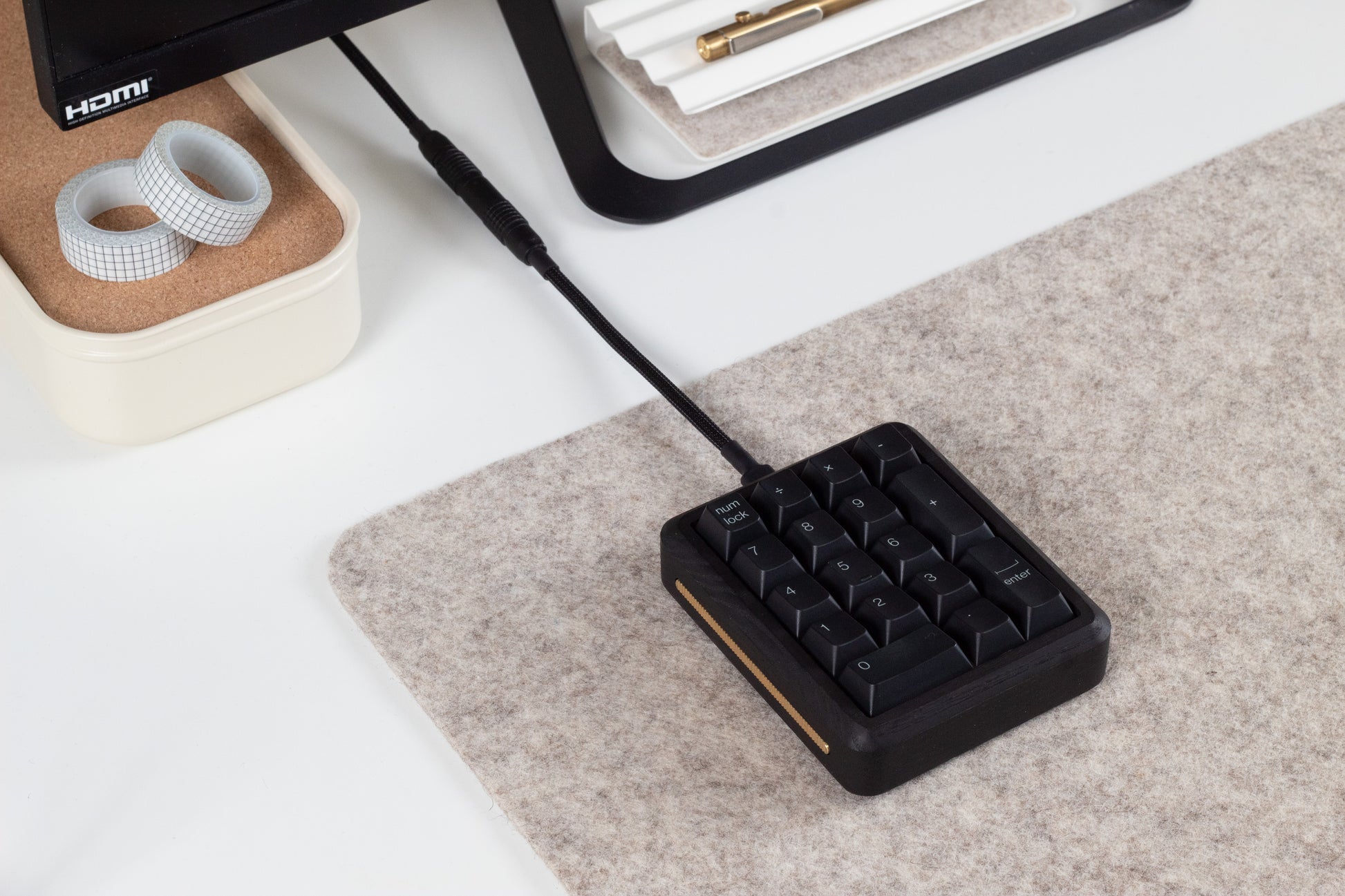

The NULLPAD Series 2.0 Barebones Numpad Kit is the essential companion for a premium custom keyboard build. Built around our all-wood case with solid metal accents, it's made for enthusiasts who value both performance and design.

This kit was designed to be as user-friendly as possible. The hotswap PCB comes pre-flashed and tested, ready to use right out of the box. For those who want more flexibility, it supports VIA for intuitive key remapping and LED configuration, while advanced users can unlock limitless customization through full QMK compatibility.

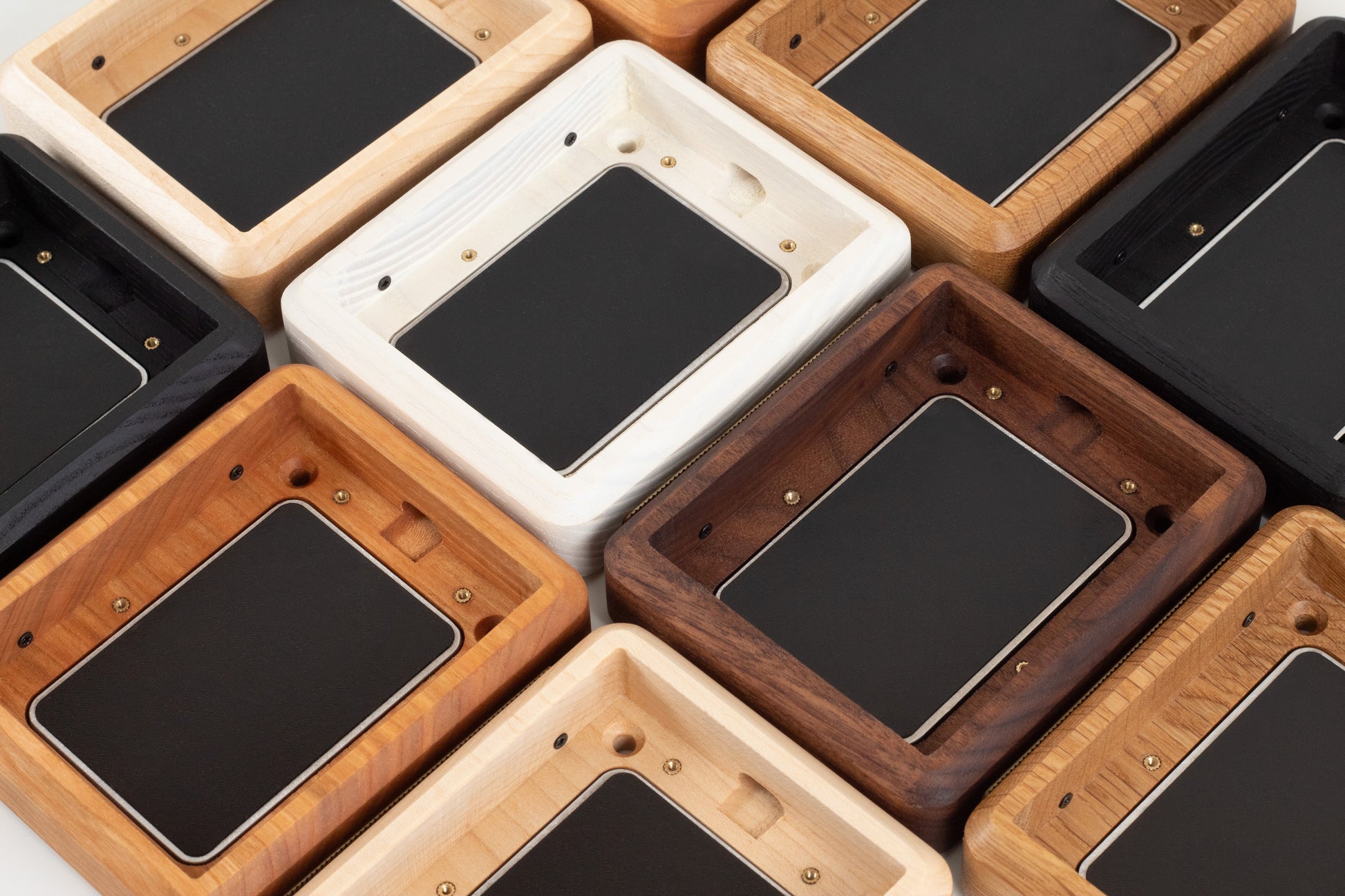

Each wood case is made in the USA, hand-assembled in-house, and crafted in partnership with small, family-owned shops in our Pennsylvania region.

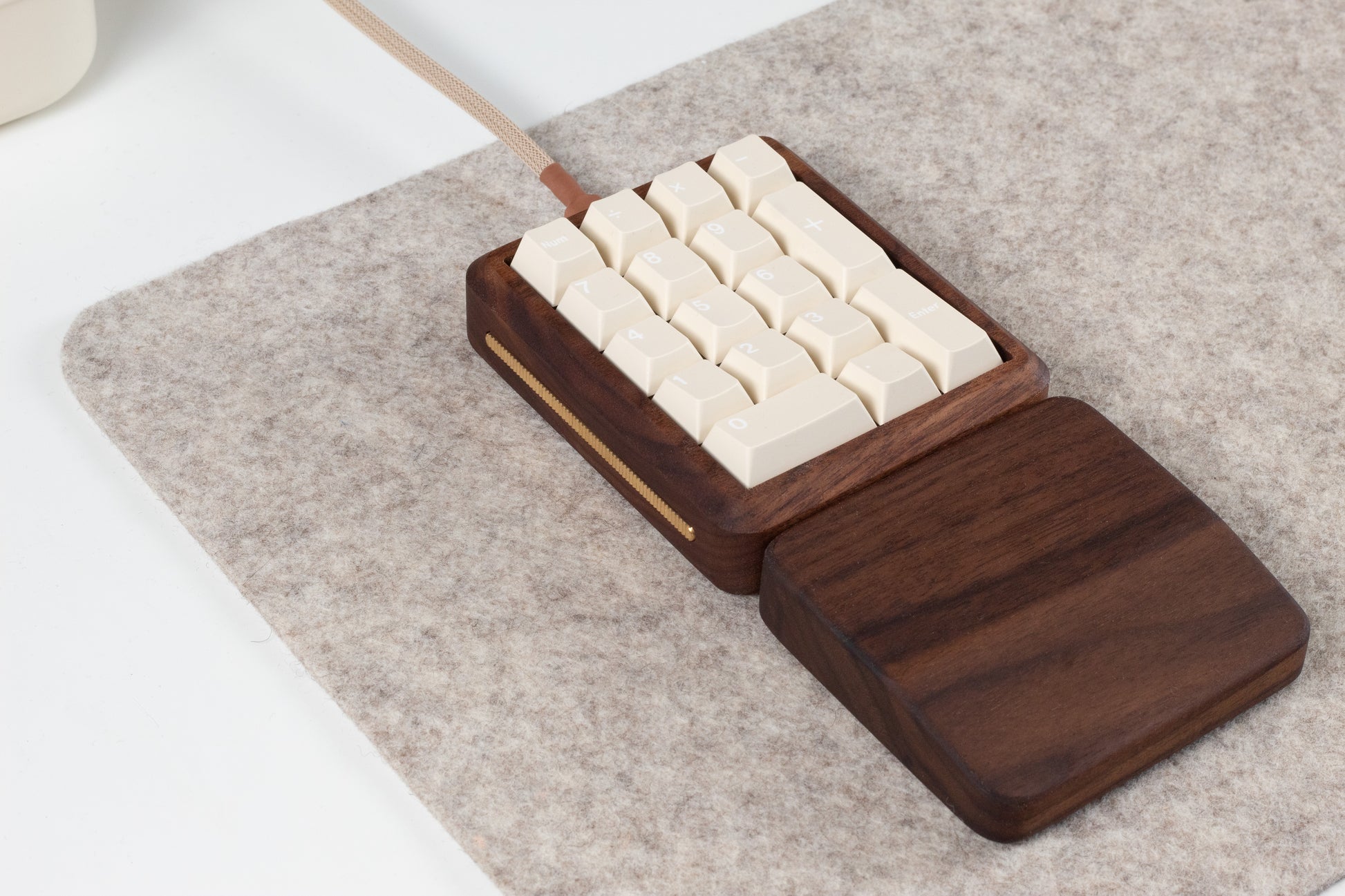

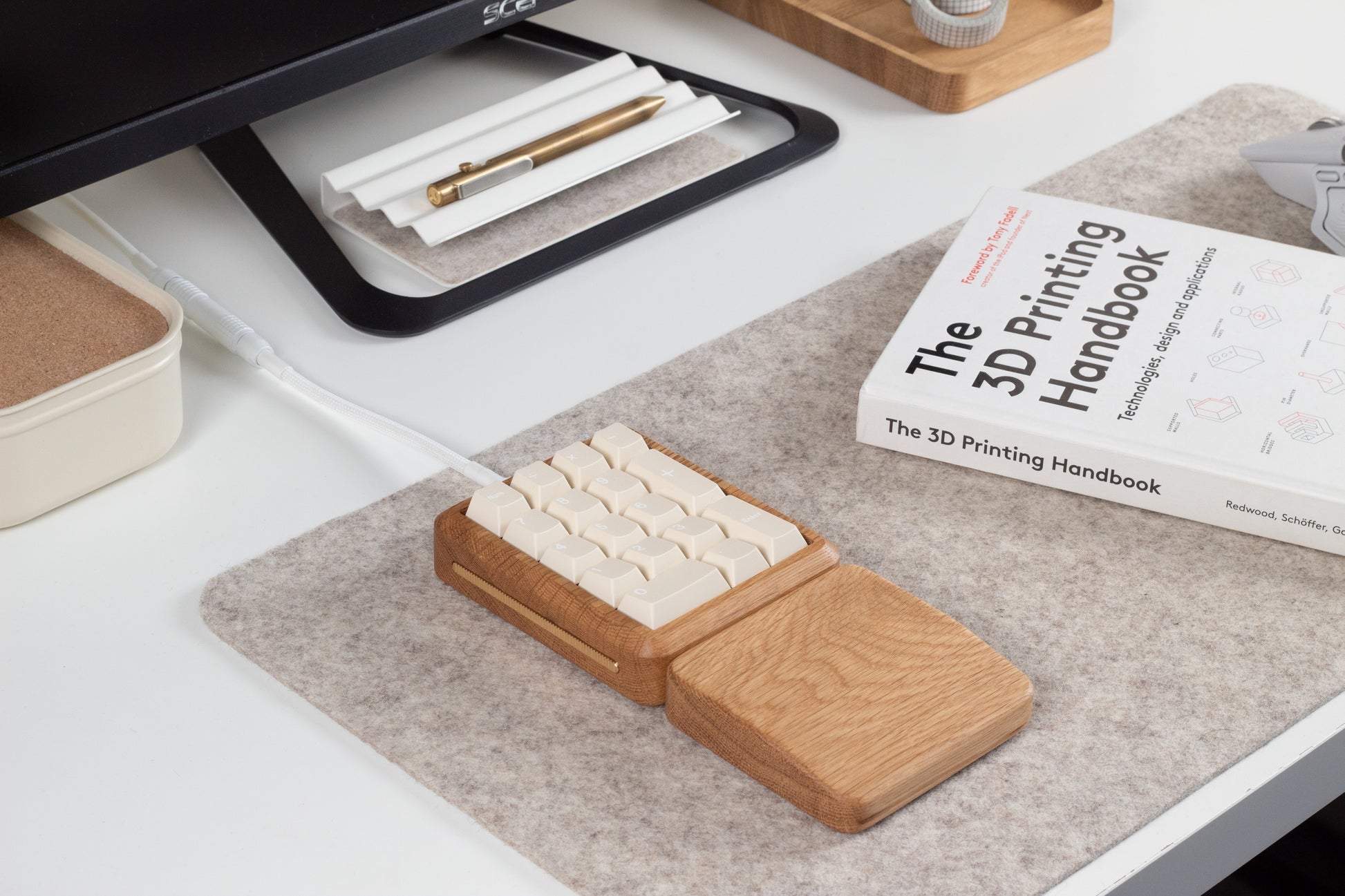

Every kit comes standard with a set of pre-installed aluminum weights, silicone feet, metal feet, and all necessary hardware and assembly tools. Further customization is available with optional add-ons such as wrist rests, brass weights, foam kits, and o-ring mod kits. Extras of included parts are also available.

Please note: this is a barebones kit, which means keycaps, switches, and a USB-C power cable are not included.

DIMENSIONS & WEIGHT

Case Dimensions: 4.5 x 3.8 x 1 in (115 x 96 x 25 mm)

Kit Weight: 1.2 lb (0.5 kg)

See individual product listings for detailed dimensions and weights.

INCLUDED PARTS

Case:

  • x1 Wood Case
  • x2 Metal Side Accents w/ x4 Mounting Screws, M2x6mm
  • x1 Aluminum Weight w/ x2 Mounting Screws, M4x6mm
  • x4 SNUF Silicone Adhesive-Backed Feet

Metal Feet:

  • x2 Metal Feet w/ Silicone Bumpers
  • x2 Brass Screws, M4x10mm

Barebones Module:

  • x1 Hotswap PCB, 1.6mm Thick
  • x1 Switch Plate

Hardware Kit:

  • x6 PCB Screws, M2x4mm
  • x6 Standoffs, M2x4mm
  • x6 Leveling Washers (x3 Thin, x3 Thick)

Tool Kit:

  • x1 Installation Screw, M2x20mm
  • x1 Hex Nut Driver Socket, 3mm
  • x1 Phillips Driver Bit, PH1
  • x1 SKUF/SNUF Foot Aligner
  • x1 Precision Screwdriver Tool

Extras:

  • x1 Linen Carrying Bag
  • x4 Silicone Bumpers

KEYBOARD SPECS

Mounting Style: Tray Mount

Case Profile: High

Front Height: 25mm (1 inch)

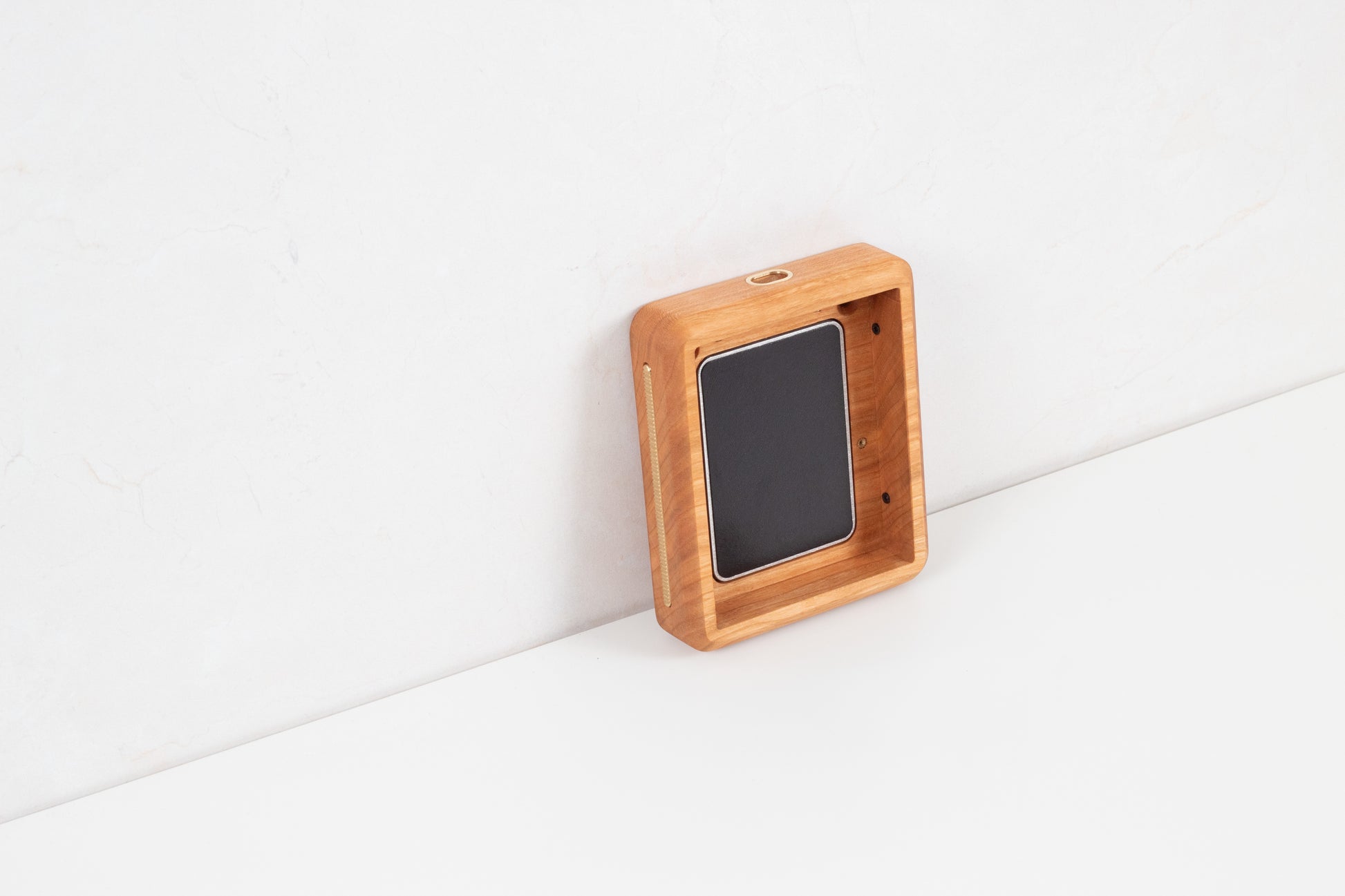

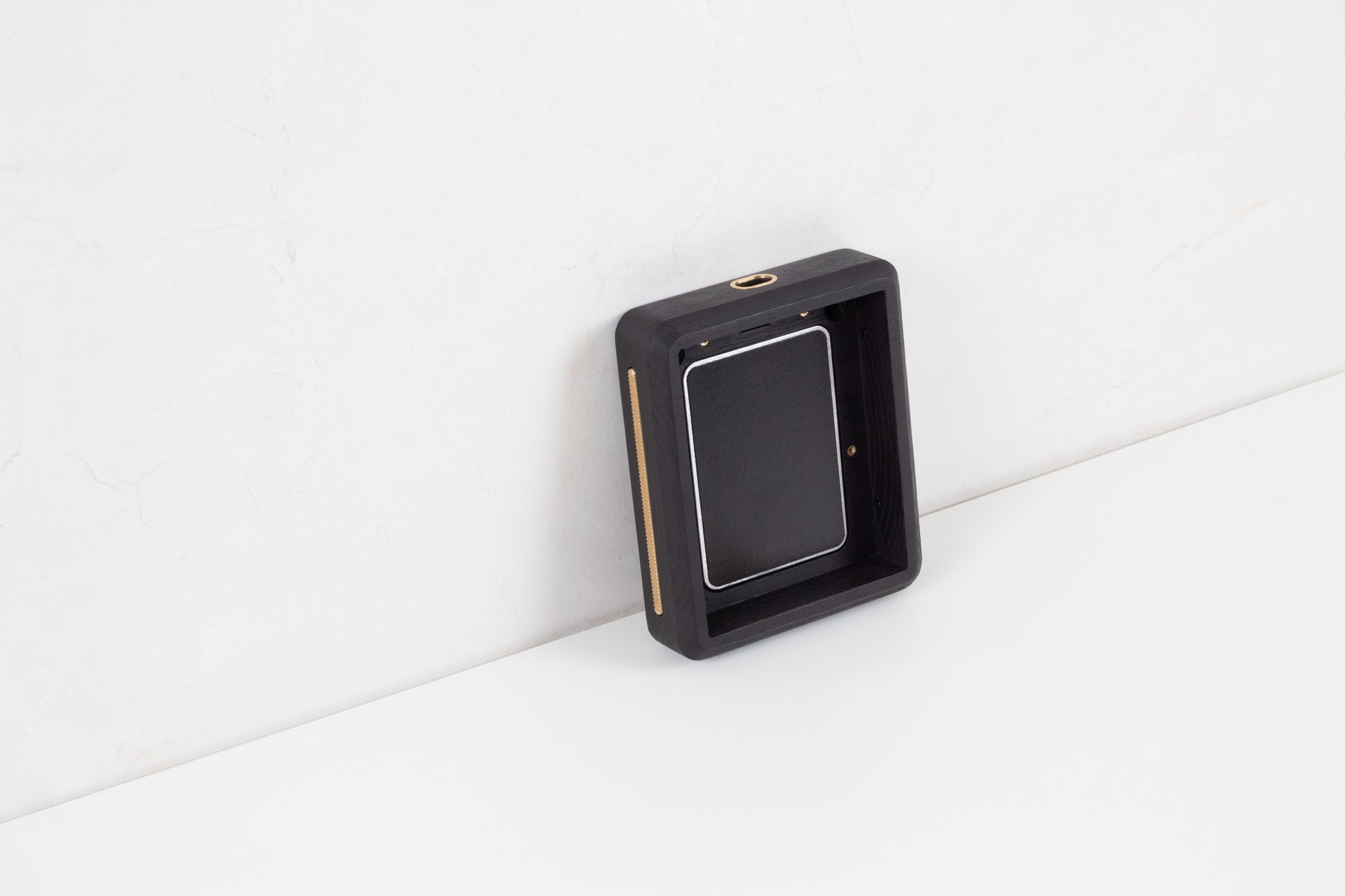

Typing Angle: 6° (with add-on feet), or 0° (no feet)

Compatibility: NULLPAD-V1 PCB

Battery-Compatible: No

CARE

Wood:

Do not allow item to get wet. If it does, please wipe off all liquid immediately. Oil finish is easy to touch-up in the event of scratches or dings. Simply sand the affected area, then rub a bit of oil into the wood. Allow to dry at least 24 hours before using.

Do not expose the item to extreme temperature changes or humidity. Since wood is a natural material, item may be prone to warping.

Do not use water, soap, or other cleaners. Wipe gently with a microfiber dust cloth.

Metal:

Brass and copper components in this product are unlacquered and made from a corrosion-resistant alloy. This unlacquered finish allows for easier maintenance and refinishing over time, as there's no lacquer coating to remove before touching up the surface. Over time, the metal will naturally develop a patina, creating a beautiful living finish that evolves with use.

If desired, the metal can be gently polished using a maroon Scotch-Brite pad to restore its original bright appearance.

Do not allow the item to become wet. If moisture occurs, wipe it off immediately. Avoid using water, soap, or any cleaning agents. For regular maintenance, wipe the brass gently with a microfiber dust cloth.

Brass Weights and Switch Plate:

Brass weights and switch plates are finished with a lacquer to protect against tarnish and corrosion. This lacquer also helps prevent accidental electrical shorts inside the keyboard. Over time, the brass will still develop a subtle patina, creating a beautiful living finish.

Do not allow the item to become wet. If moisture occurs, wipe it off immediately. Avoid using water, soap, or any cleaning agents. For regular maintenance, wipe gently with a microfiber dust cloth.

PCB:

Always hold the PCB by the edges to avoid damaging components or connectors. Make sure to avoid flexing. Do not bend or twist the PCB when installing it into your case. Be gentle while inserting sockets into the board, if you have purchased a hotswap-compatible variant. Insert the switches straight and firmly—do not force or rock them.

Avoid any exposure to liquids or high humidity. Moisture can damage the PCB and cause malfunction. While rare, static discharge can harm electronics. Touch a metal object before handling the PCB to reduce risk.

Dust only with air. If you have to clean your PCB, use a can of compressed air or a soft brush. Do not use water, alcohol, or cleaning sprays. Please do not attempt to remove components or modify the board.

Use standard USB-C power. Always connect to a computer or USB power source rated for keyboard use. Use only the firmware that is outlined in the instructions for each keyboard kit. Do not try to flash custom firmware. Improper flashing can brick the PCB.

PRE-ORDER INFO & UPDATES

Pre-Order Period: May 12 - June 9, 2026

Estimated Fulfillment: Q3 2026

Disclaimer:

This item is part of a Pre-Order, and is not stocked. Payment is collected at the time of purchase. Due to the nature of Pre-Orders, items are non-returnable except in the rare case of a defective item. Cancellations are accepted only within 2 hours of placing your order.

Once the Pre-Order period ends, production will begin. Orders will be fulfilled in the order they were received. The fulfillment timelines listed below are estimates only and may be subject to delays. By placing an order, you acknowledge and accept these terms. For more information on Pre-Orders, please visit our FAQ.

To avoid delays to your In Stock items, we recommend placing In Stock and Pre-Order items in separate orders. If combined, all items will ship together once the Pre-Order has been fulfilled.

Estimated Fulfillment Timeline:

  • 50 orders reached: Ships ~8-10 weeks after Pre-Order closes.
  • 100 orders reached: Ships ~10-14 weeks after Pre-Order closes.
  • 100+ orders reached: Ships ~14+ weeks after Pre-Order closes.

Extras:

If you miss the Pre-Order, a limited number of extras will be available once all orders have been fulfilled. If demand is high enough, this product may later become an In Stock item, but this is not guaranteed.

Updates:

  • Pre-Order opened. (05/12/26)

View full details

Extra Parts

View All

Key Features

Every detail of the NULLPAD Series 2.0 is designed to elevate both your typing experience and your desk setup, from its refined materials to its thoughtful ergonomics and acoustics. Whether you prioritize aesthetics, feel, or sound, this board offers the flexibility to make it distinctly your own.

  • Customizable Side Accents

    Choose solid brass or stainless steel accents in brushed or fluted designs. Brass develops a rich patina over time, while stainless steel keeps a clean, timeless look. Our removable accent system makes swapping finishes easy, and the new fluted option adds both visual depth and a satisfying tactile element.

  • USB Cutout Metal Accent

    A signature detail of our cases, the solid metal inlay protects the port from wear while tying into the board's premium accents.

  • Premium Brass Weight Upgrade

    Upgrade your board with a brushed solid brass weight for added heft, richer tone, and a refined, high-end aesthetic. Heavier than the standard aluminum weight included with your case, brass delivers a premium look, feel, and sound.

Adjustable Typing Angle

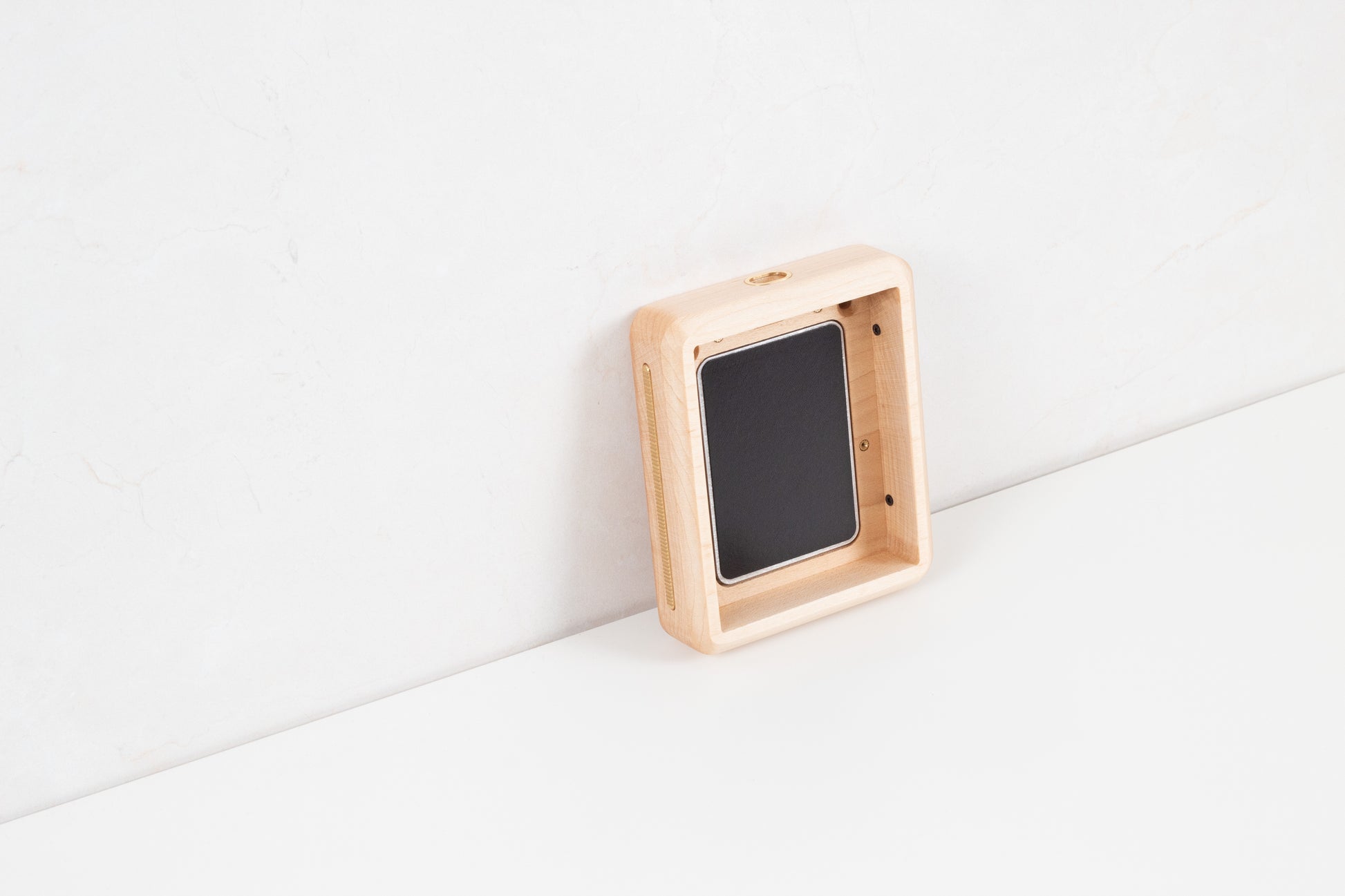

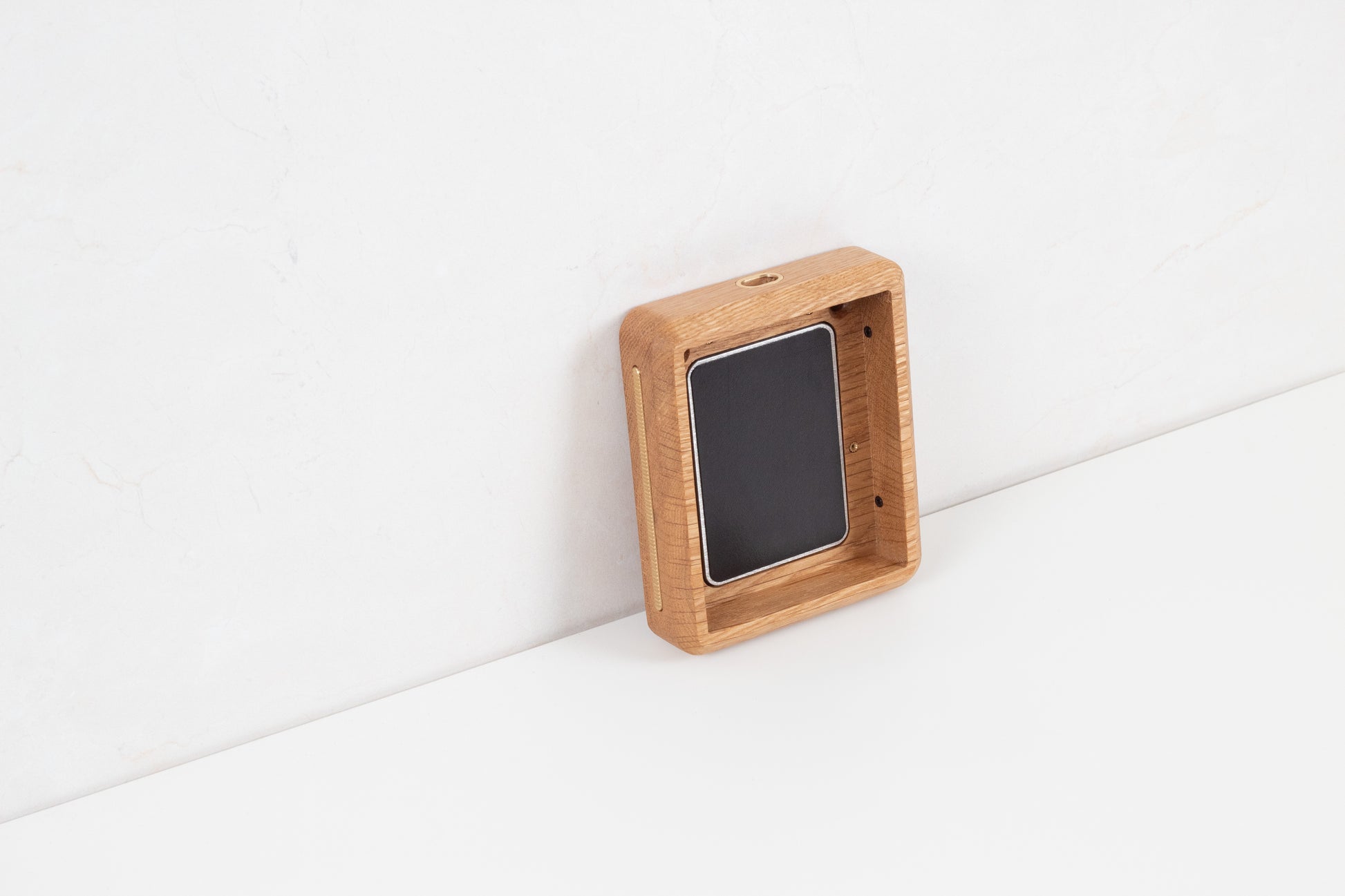

Use the included custom-milled keyboard feet for a 6° typing angle, or leave them off for a flat build.

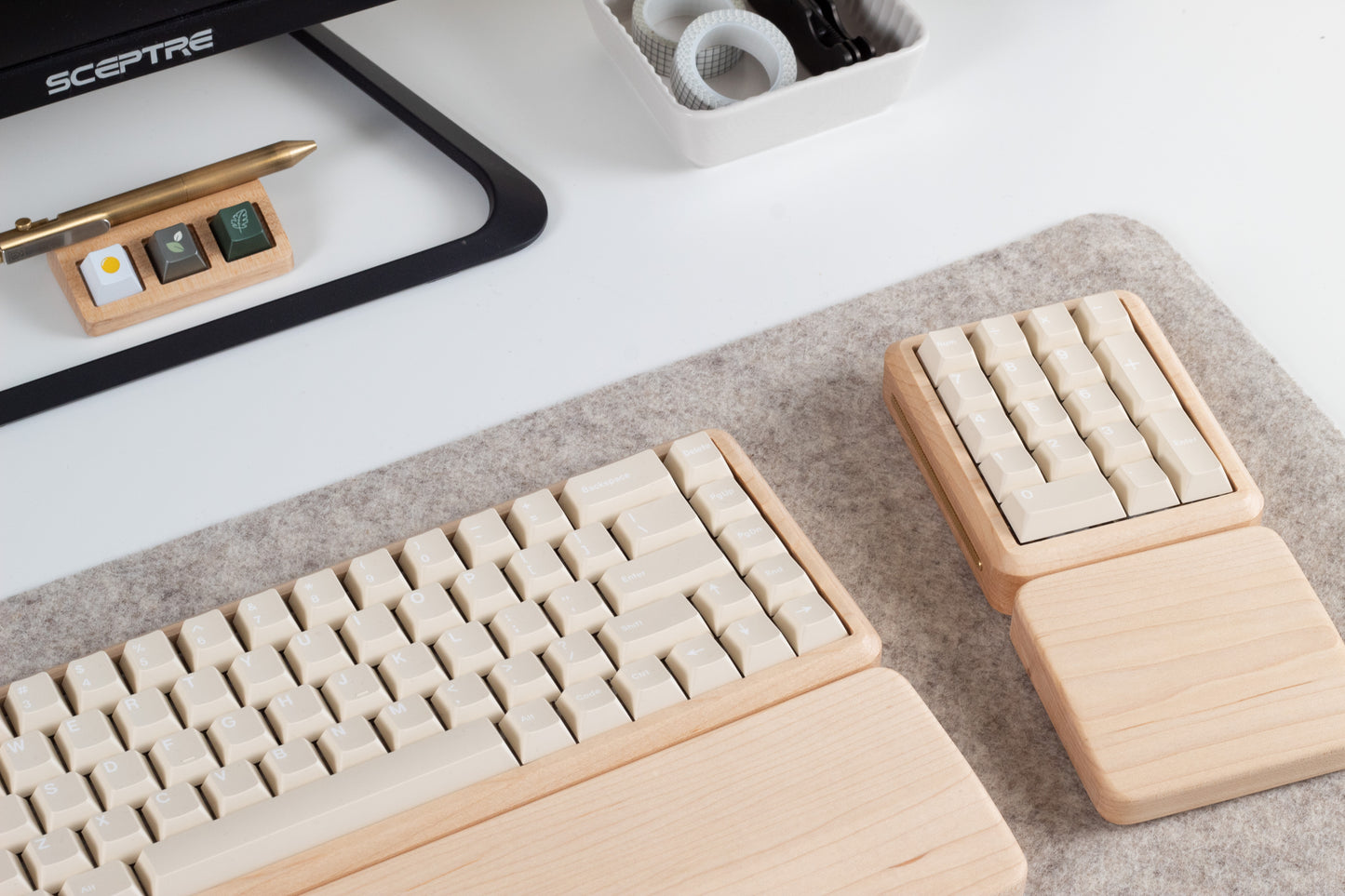

Flexible Placement

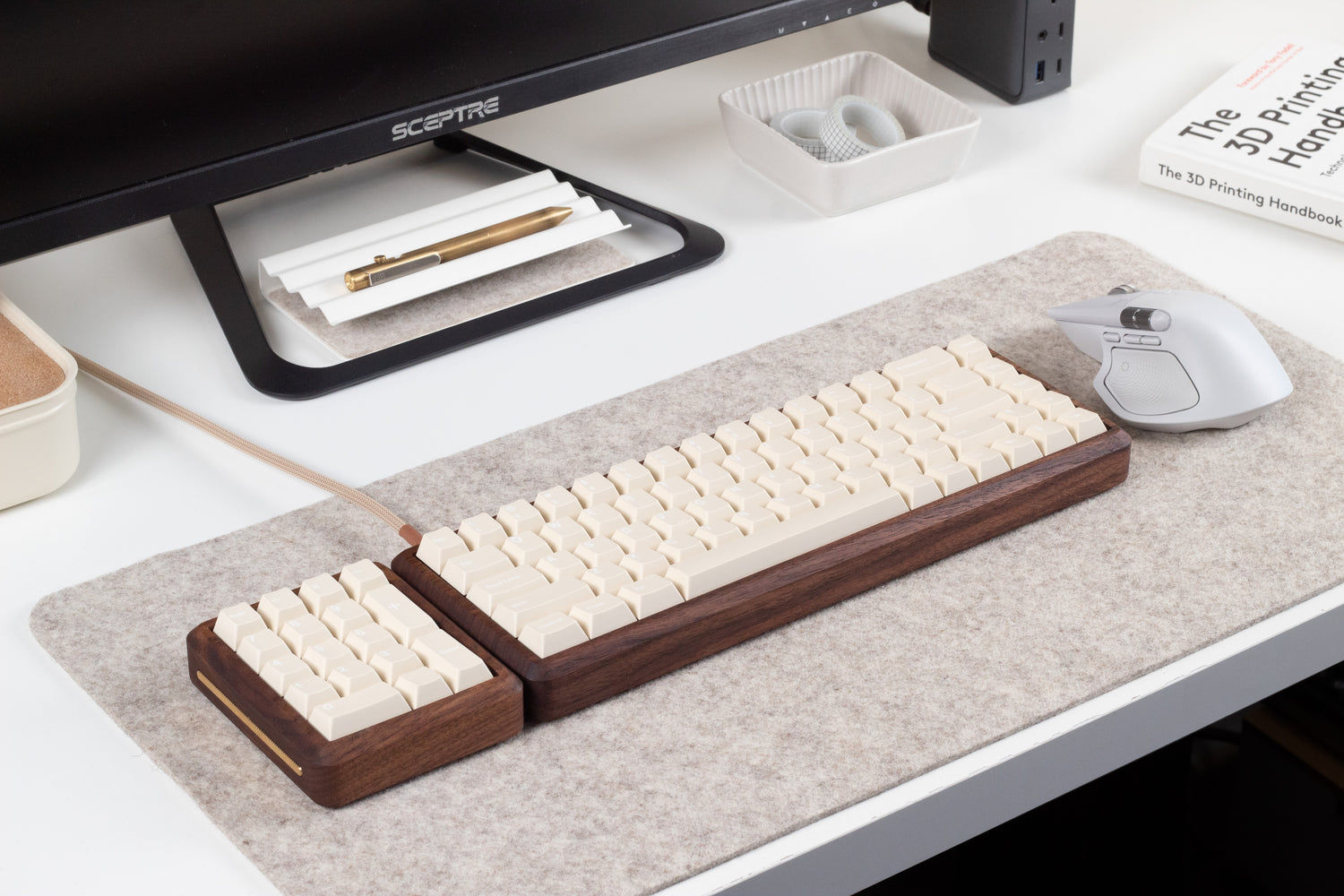

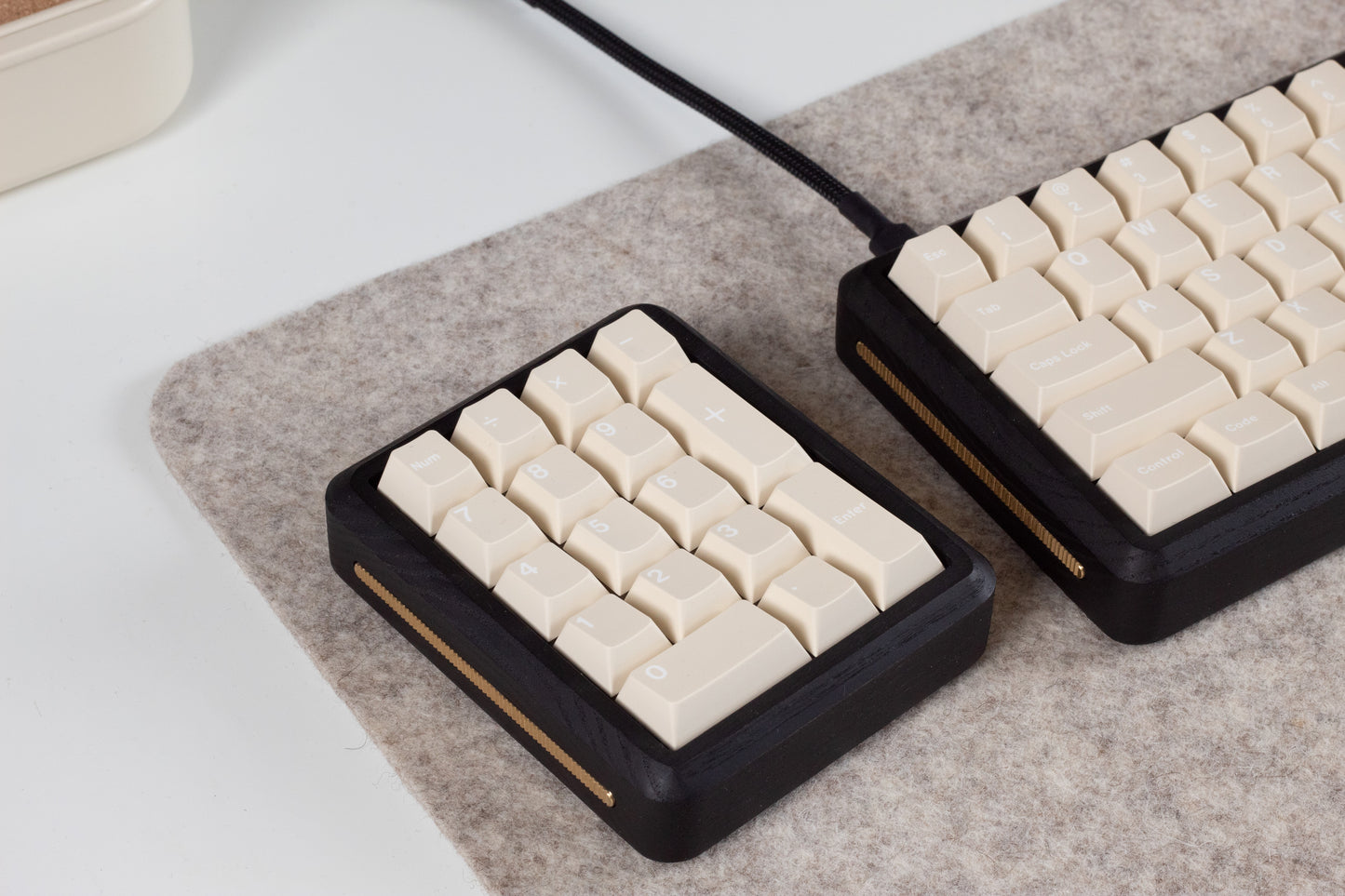

Use the NULLPAD on either side of your keyboard to match your workflow and desk setup.

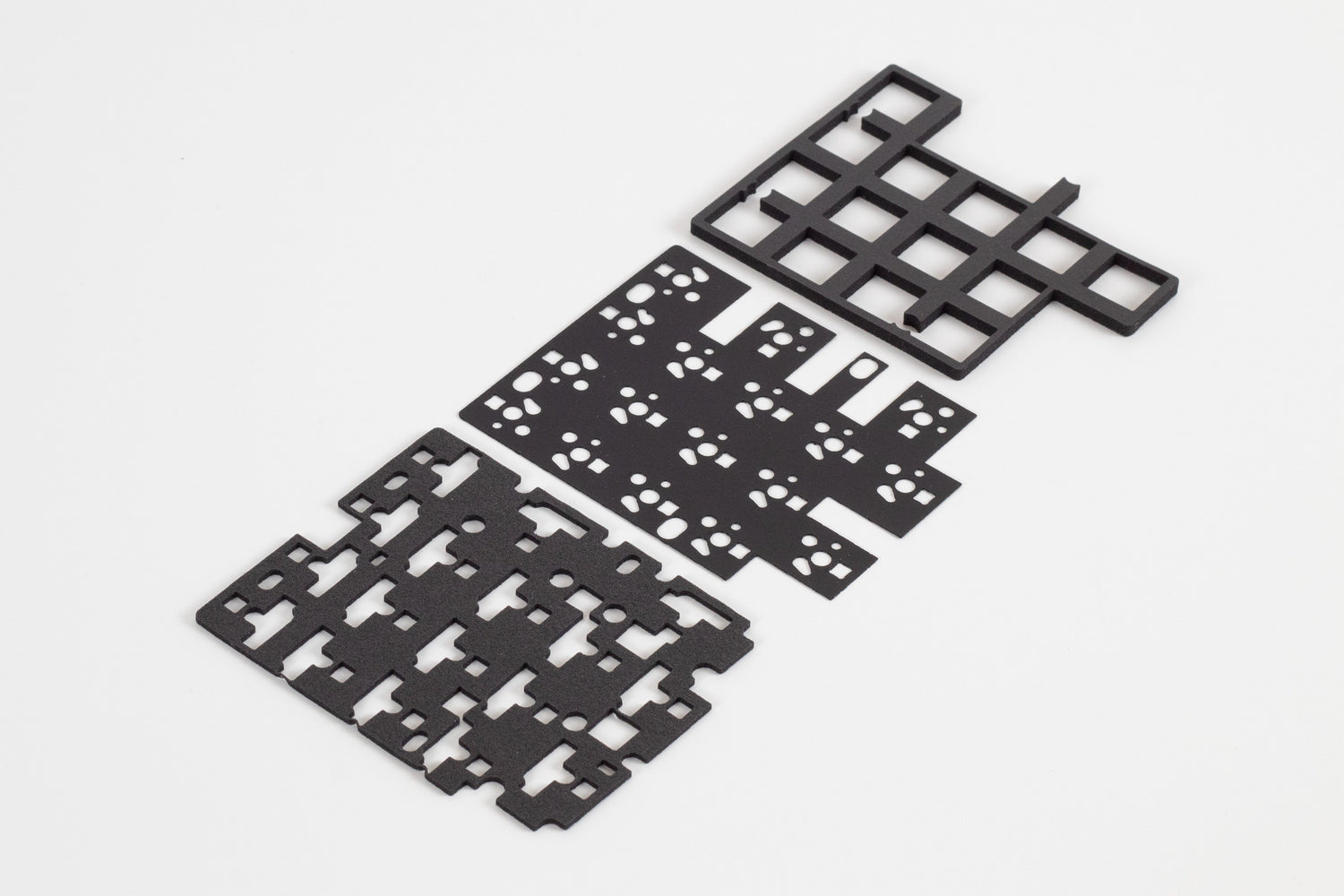

Sound Dampening

Enhance your build with our NULLPAD foam kit, mixing and matching layers to fine-tune dampening, resonance, and tone.

Hotswap PCB

Our hotswap PCB lets you change switches without soldering, perfect for testing different switch types or making quick updates. Durable Gen 2 Kailh sockets are rated for thousands of cycles, while full QMK/VIA support and per-key RGB lighting give you complete control over keymaps and aesthetics. Available in a standard numpad layout.

  • Kailh Gen 2 Hotswap Sockets

    PCB uses Kailh Generation 2 hotswap sockets, rated for >6,000 cycles.

  • QMK + VIA

    PCB can be programmed using QMK + VIA for instant key-mapping.

  • Standard Numpad Layout

    PCB is built around a standard numpad layout for seamless integration into your setup.

  • Per-Key LEDs

    PCB comes with per-key RGB LEDs, customizable through QMK/VIA for tons of colors and patterns.

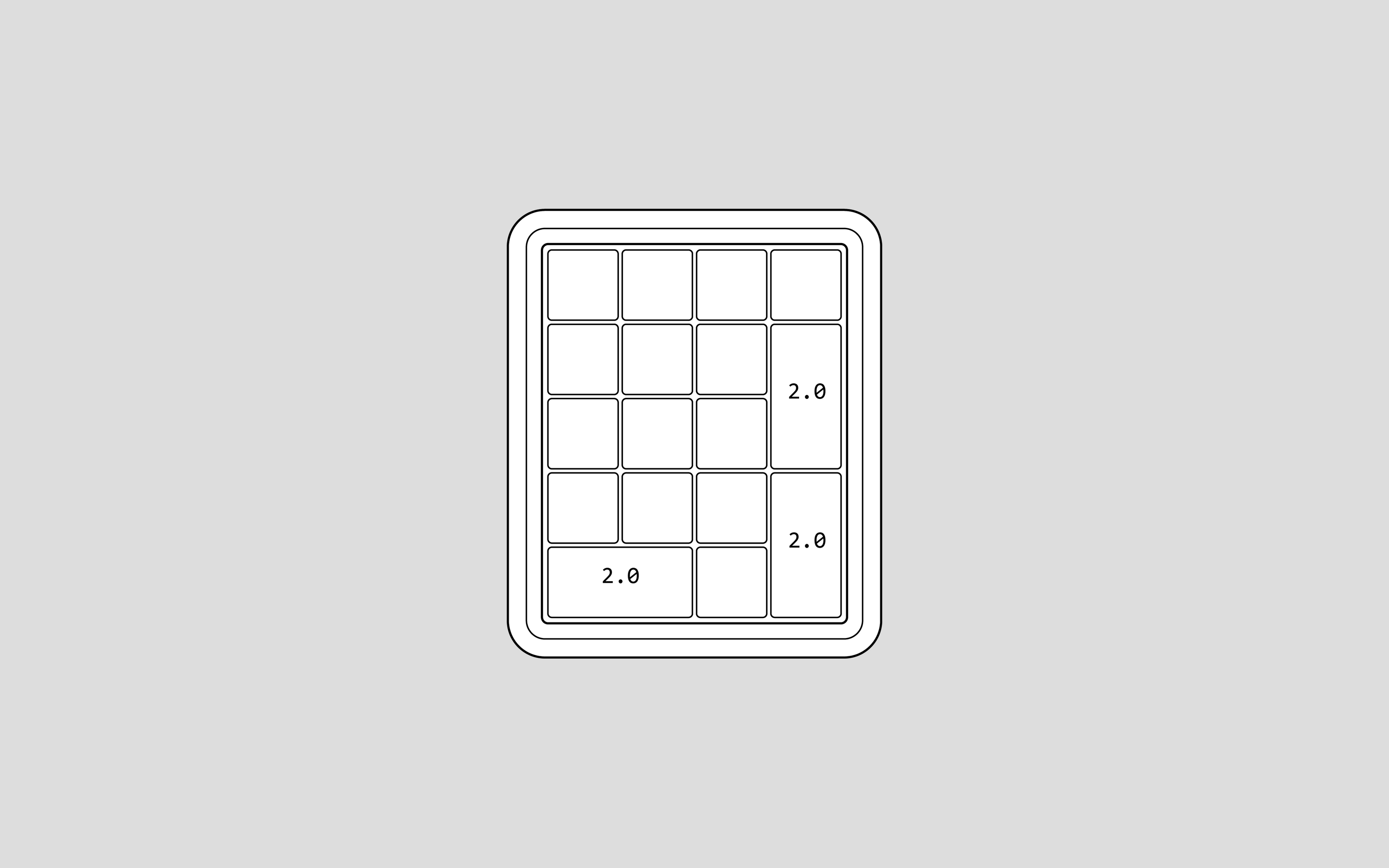

  • Numpad Layout (Standard)

    Requires 17 Switches

FAQ

Is this a complete numpad? What else will I need for my build?

The NULLPAD Series 2.0 numpad kit is barebones, meaning it will come with everything you need for the build besides switches, keycaps, stabilizers, lubricant (optional), and a USB-C power cable. If you need some recommendations for any of these parts, please reach out as we would be happy to assist!

What are the benefits of having a separate numpad?

A separate numpad gives you more flexibility in how you use your workspace. Full-size keyboards can take up a lot of desk space, and sometimes you may prefer a more compact setup without a permanently attached numpad.

With a standalone numpad, you can position it wherever feels most comfortable—on the left or right side of your keyboard, closer to your mouse, or moved aside entirely when not in use. It's also a great option for productivity workflows, gaming, or creative applications.

You can even use a second NULLPAD as a dedicated macropad for shortcuts, media controls, or custom keybinds.

Why does the wood look unfinished?

This is intentional! Each of our wood products is hand-sanded and finished with a hardwax oil. This combination allows the oil to penetrate deep into the wood, protecting it from within while enhancing its natural beauty and providing surface protection against light wear and tear.

Unlike built-up film finishes such as polyurethane or lacquer, hardwax oil contains 0 VOCs (volatile organic compounds), making it safe for kids, pets, and the environment. It also avoids the "plastic" look of film finishes, instead giving the wood a natural, hand-rubbed appearance that lets you to see and feel the grain.

Hardwax oil is also far easier to maintain. Film finishes require stripping the entire surface to repair damage, but with hardwax oil, you can simply spot-treat dry areas or scratches, keeping your piece looking beautiful for a lifetime.

Can I get my own switch plate cut for the NULLPAD?

Yes! If you would like a material for your switch plate that we do not currently offer, then you can get it cut yourself using the plate file provided in the Product Attachments section above. There are many great manufacturer options to choose from, including LaserBoost, SendCutSend, Xometry, and individual Etsy sellers.

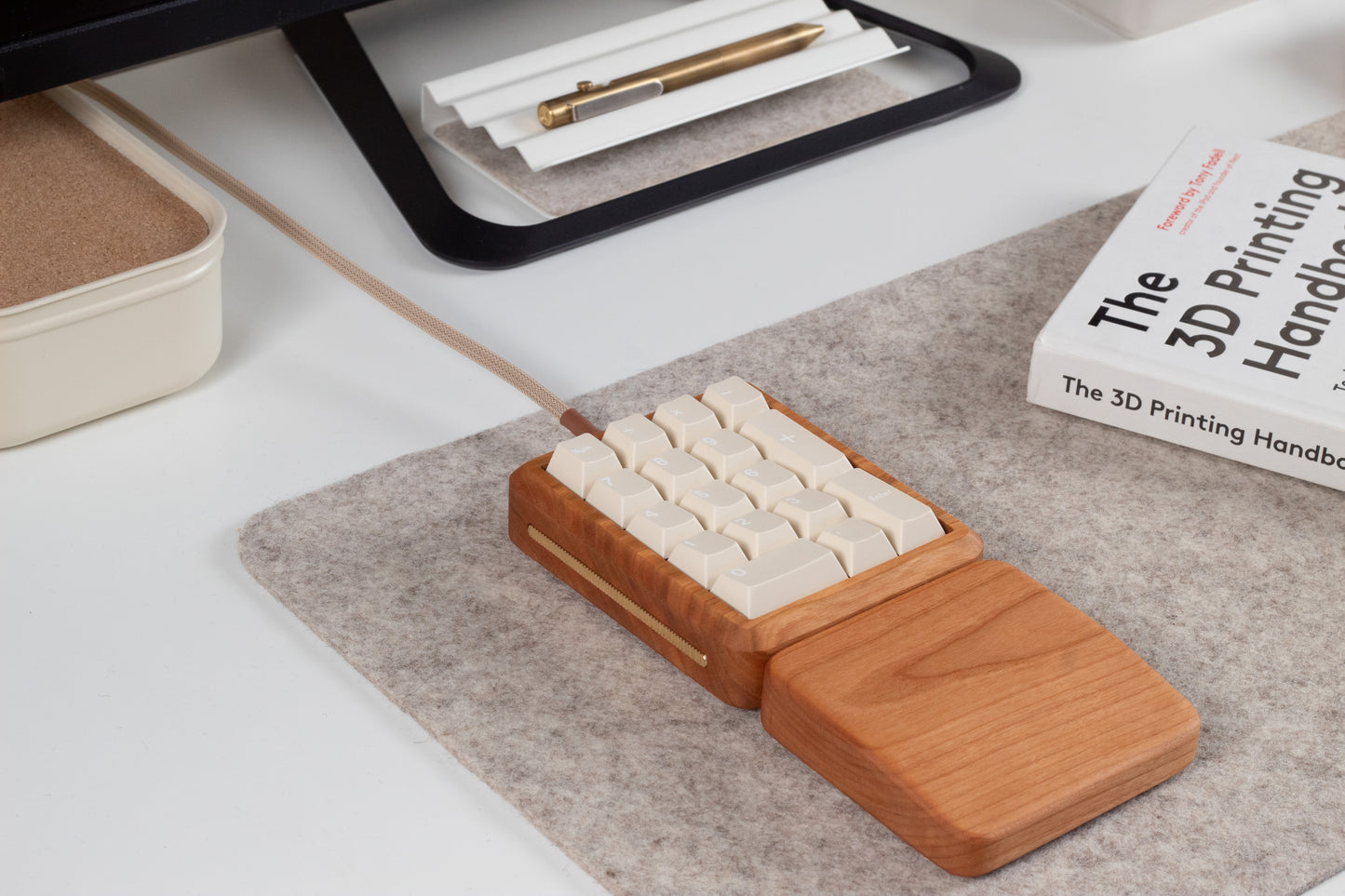

Why does my cherry case look darker or lighter than the product photos?

Cherry is a unique wood that is highly reactive to UV light. Its color will change over time, gradually darkening with exposure to develop a beautiful, deep, and rich tone.

Where can I get help with trouble-shooting my NULLPAD-V1 PCB?

Try asking in our Discord server first! You can tag our mod for PCB help by typing @Quark before your message. If you still need further assistance, feel free to shoot us an email at sales@nulldesignco.com, or reach out on our Contact page.
