NULLPAD V1 PCB | PRE-ORDER

NULLPAD V1 PCB | PRE-ORDER

$39.00
$39.00
Sale Sold out

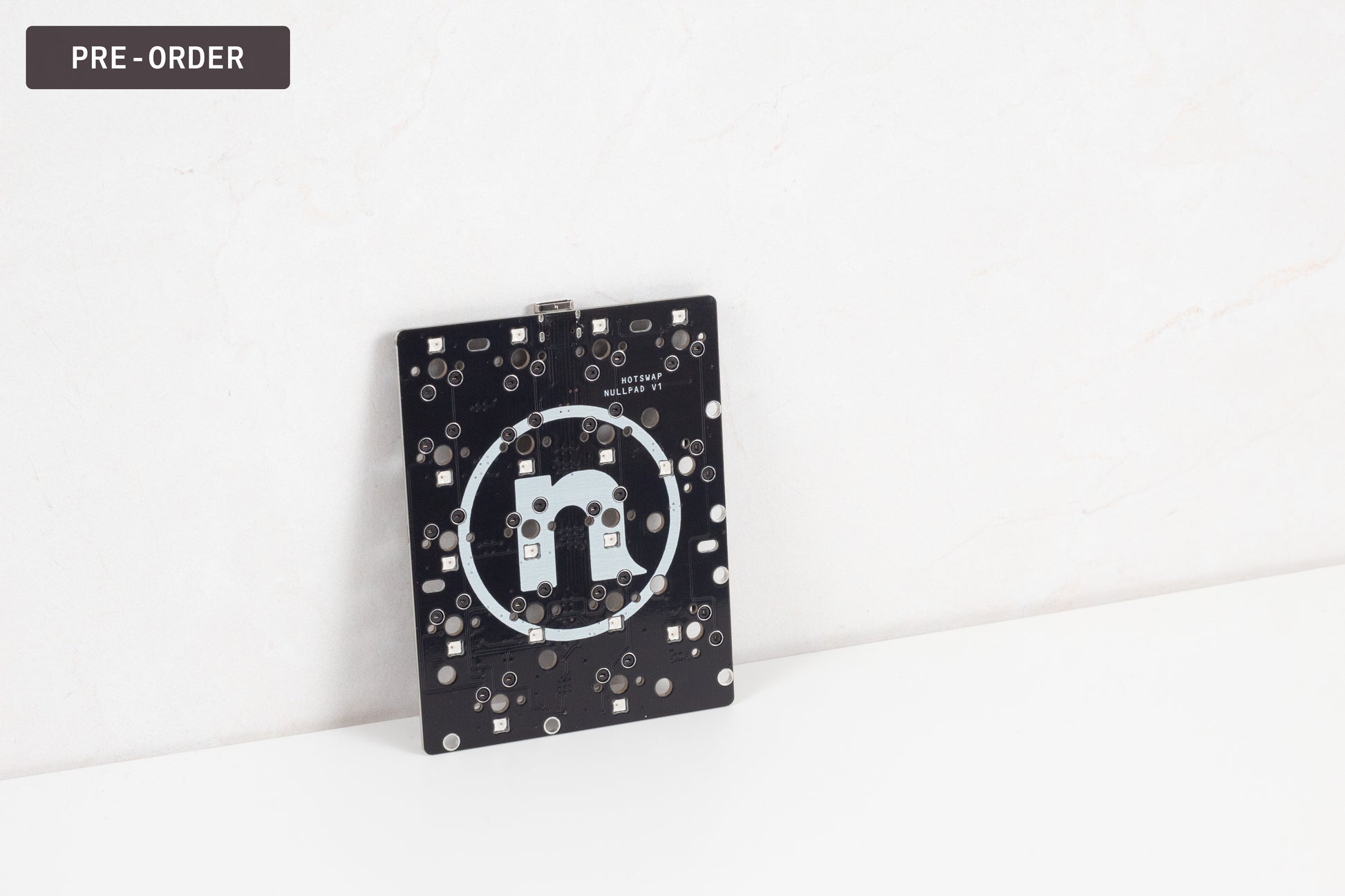

This hotswap PCB was designed by Quark.Works specifically for the NULLPAD Series 2.0 Barebones Numpad Kit.

Designed with user-friendliness in mind, this 1.6mm thick PCB comes tested and pre-flashed with firmware, so you can start typing right out of the box. For those who want more advanced customization, it fully supports QMK for deep-level programming and flexibility. And if you’re somewhere in the middle, VIA offers an intuitive way to remap keys, tweak layouts, and customize the LEDs without needing to dive into code.

Features:

  • Onboard USB-C Connector: Wired-only operation ensures a safe and reliable experience—no swollen batteries, wireless latency (lag), or misplaced receivers.
  • Switch Compatibility: MX-style mechanical switches (3-pin and 5-pin supported). Magnetic/Hall Effect (HE) switches are not compatible.
  • Per-Key RGB Lighting: Fully customizable RGB LEDs for every key.
  • Kailh Gen 2 Hotswap Sockets: Improved over Gen 1 with better durability and reliability; rated for 6,000+ insertion cycles.
  • No Soldering Required: Pre-soldered hotswap sockets allow switches to be installed and replaced at any time.

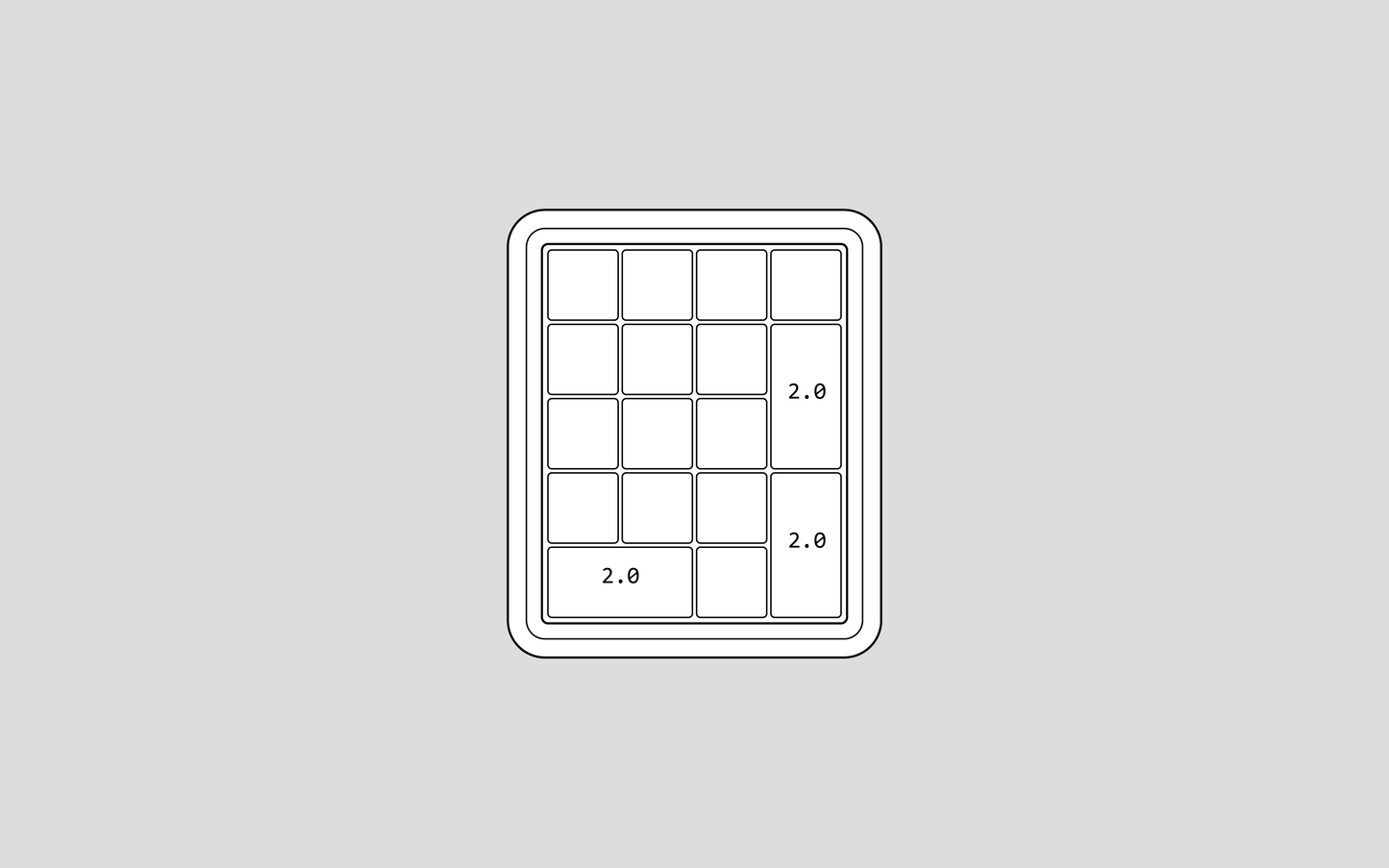

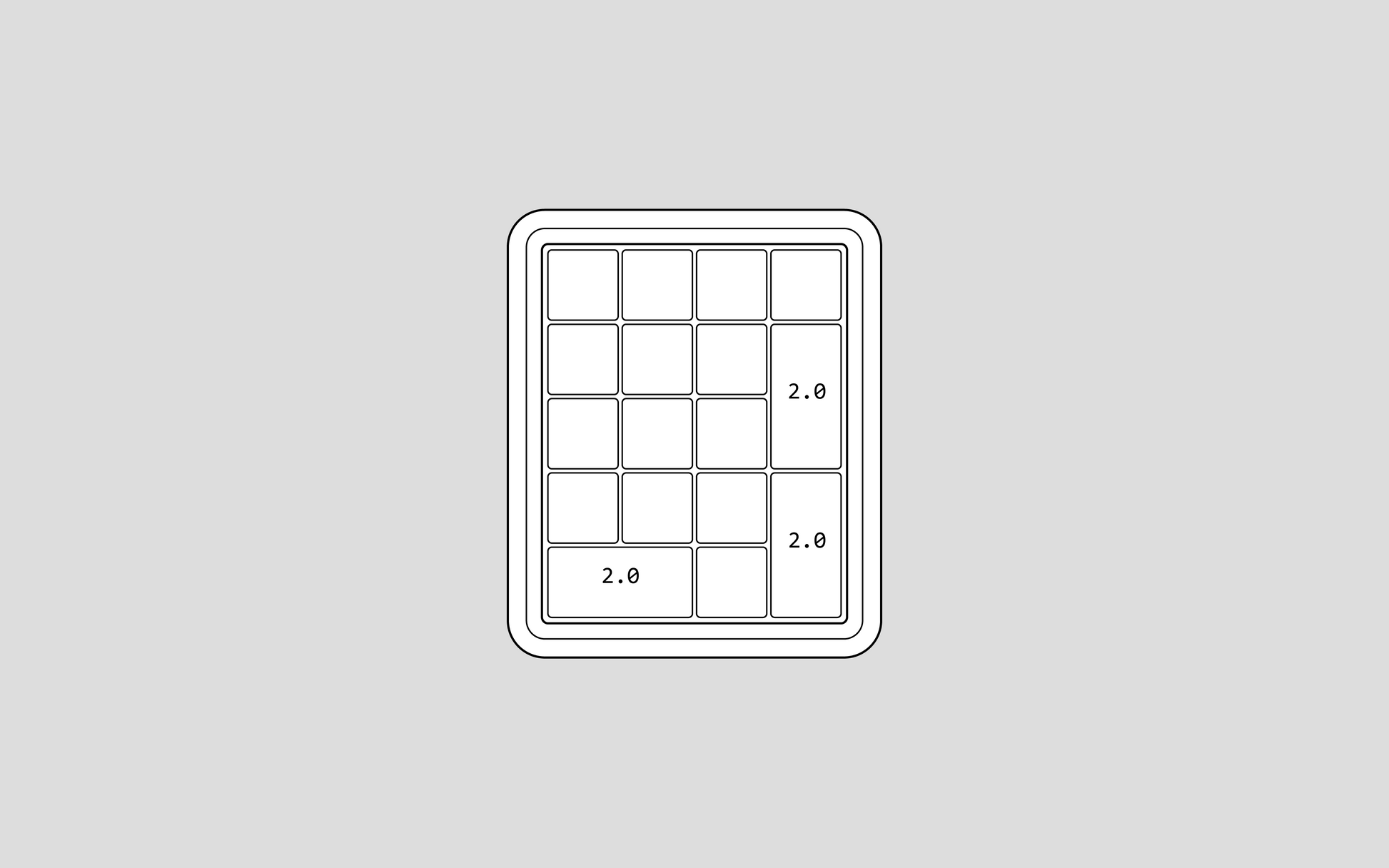

  • Layout Support: Standard numpad layout.
  • ESD Protection Circuit: Helps protect sensitive components from electrostatic discharge during handling.
  • QMK and VIA Compatible: Fully programmable with user-friendly interfaces and extensive customization options.
  • Compatibility: Designed for all NULLPAD cases and switch plates.
  • Version: V1 - Initial product release.

This part is included with all keyboard kits, but is also available here as a replacement or extra.

DIMENSIONS & WEIGHT

  • 3.7 x 3 x 0.06 in (95 x 75 x 1.6 mm)
  • 35 g

INCLUDED PARTS

  • x1 Hotswap PCB, 1.6mm thick
  • x2 PCB Gaskets

CARE

Always hold the PCB by the edges to avoid damaging components or connectors. Make sure to avoid flexing. Do not bend or twist the PCB when installing it into your case. Be gentle while inserting sockets into the board, if you have purchased a hotswap-compatible variant. Insert the switches straight and firmly—do not force or rock them.

Avoid any exposure to liquids or high humidity. Moisture can damage the PCB and cause malfunction. While rare, static discharge can harm electronics. Touch a metal object before handling the PCB to reduce risk.

Dust only with air. If you have to clean your PCB, use a can of compressed air or a soft brush. Do not use water, alcohol, or cleaning sprays. Please do not attempt to remove components or modify the board.

Use standard USB-C power. Always connect to a computer or USB power source rated for keyboard use. Use only the firmware that is outlined in the instructions for each keyboard kit. Do not try to flash custom firmware. Improper flashing can brick the PCB.

PRE-ORDER INFO & UPDATES

Pre-Order Period: May 12 - June 9, 2026

Estimated Fulfillment: Q3 2026

Disclaimer:

This item is part of a Pre-Order, and is not stocked. Payment is collected at the time of purchase. Due to the nature of Pre-Orders, items are non-returnable except in the rare case of a defective item. Cancellations are accepted only within 2 hours of placing your order.

Once the Pre-Order period ends, production will begin. Orders will be fulfilled in the order they were received. The fulfillment timelines listed below are estimates only and may be subject to delays. By placing an order, you acknowledge and accept these terms. For more information on Pre-Orders, please visit our FAQ.

To avoid delays to your In Stock items, we recommend placing In Stock and Pre-Order items in separate orders. If combined, all items will ship together once the Pre-Order has been fulfilled.

Estimated Fulfillment Timeline:

  • 50 orders reached: Ships ~8-10 weeks after Pre-Order closes.
  • 100 orders reached: Ships ~10-14 weeks after Pre-Order closes.
  • 100+ orders reached: Ships ~14+ weeks after Pre-Order closes.

Extras:

If you miss the Pre-Order, a limited number of extras will be available once all orders have been fulfilled. If demand is high enough, this product may later become an In Stock item, but this is not guaranteed.

Updates:

  • Pre-Order opened. (05/12/26)

KEYBOARD COMPATIBILITY

This item will work with our NULLPAD Series 2.0 numpad.

View full details
