O-Ring Mod Kit - GROUP BUY
O-Ring Mod Kit - GROUP BUY
Couldn't load pickup availability
The O-Ring Mod Kit is a great addition to any tray mount case purchase. Use this kit in your next keyboard build to add a more cushioned typing feel and better acoustics.
To Install:
- Make sure standoffs are installed on the case. When using this o-ring mod kit, please make sure that the shorter, 3mm high standoffs from this kit are used.
- Slip one o-ring onto each of the screws.
- Next, insert each screw into the mounting holes located on the pre-assembled module (Switch Plate + Switches/Stabilizers + PCB).
- Flip the module over, and slip one o-ring onto the back of each screw, pushing it tight up against the underside of the PCB.
- Place the module into the case.
- Finally, using a Phillips screw driver, gently tighten each screw so that the module is secured to the case. DO NOT overtighten.
This part is NOT included with keyboard kits and must be purchased separately as an optional add-on.
DIMENSIONS & WEIGHT
DIMENSIONS & WEIGHT
- 0.1 lbs (0.05 kg)

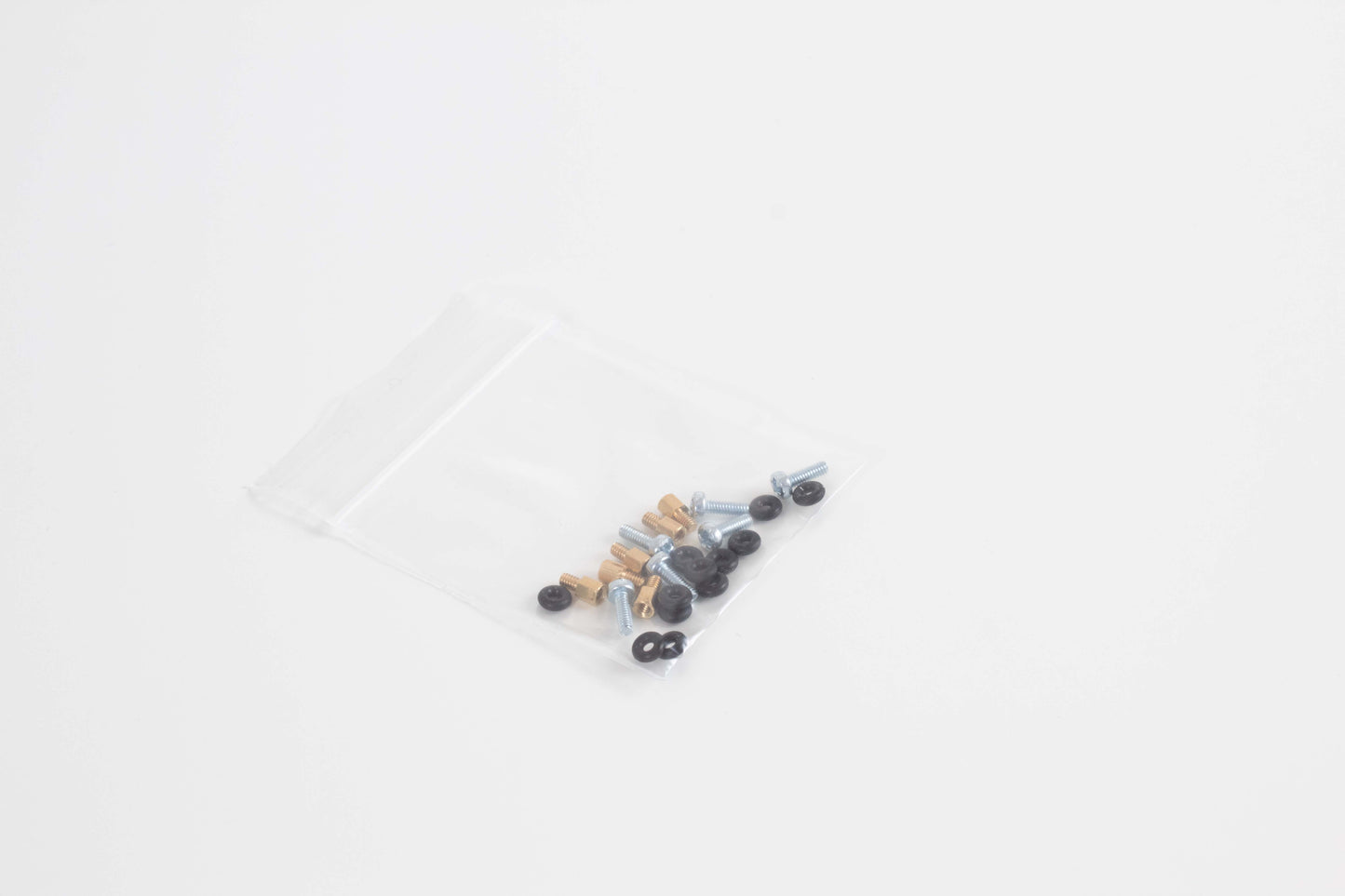

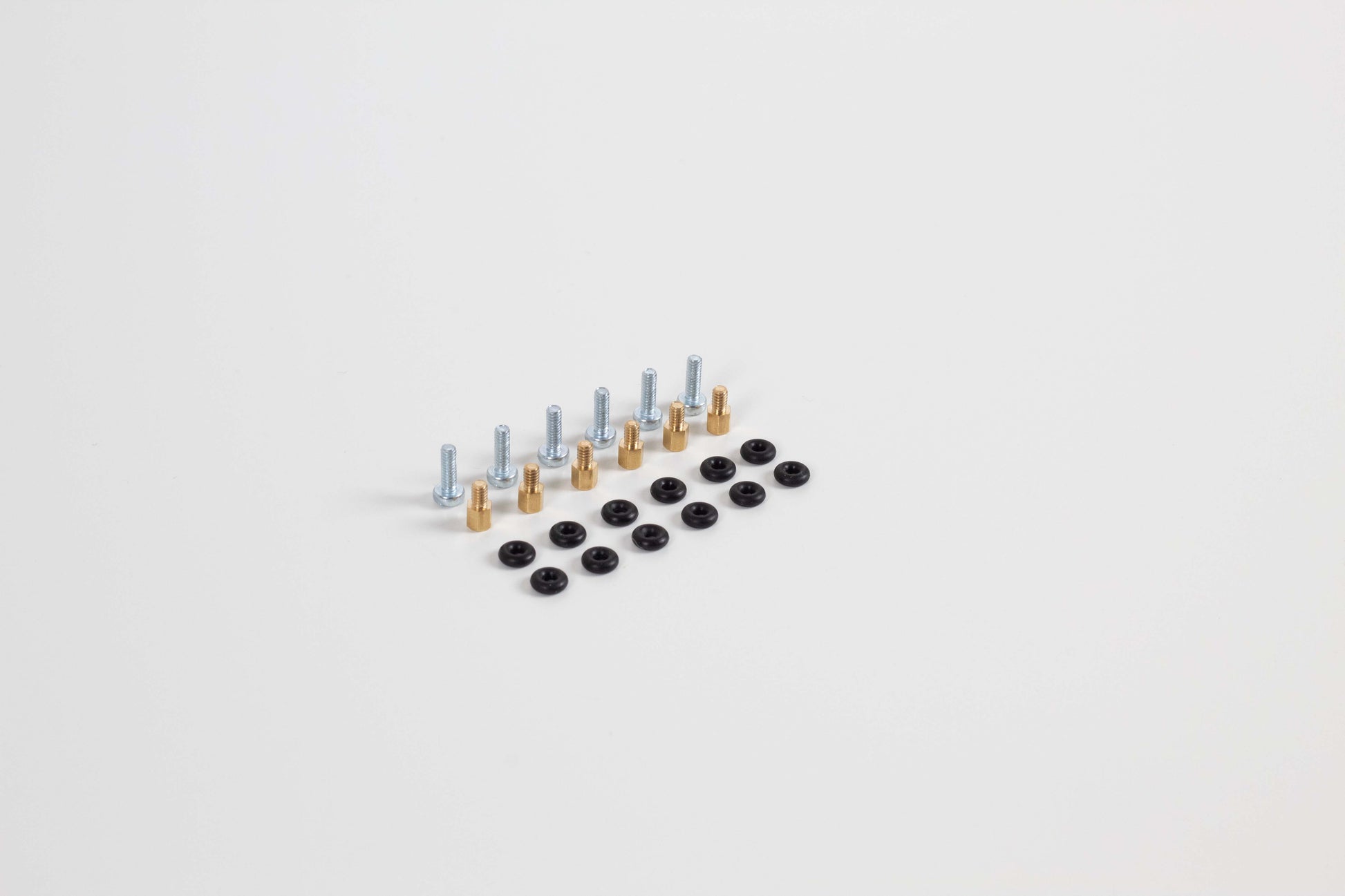

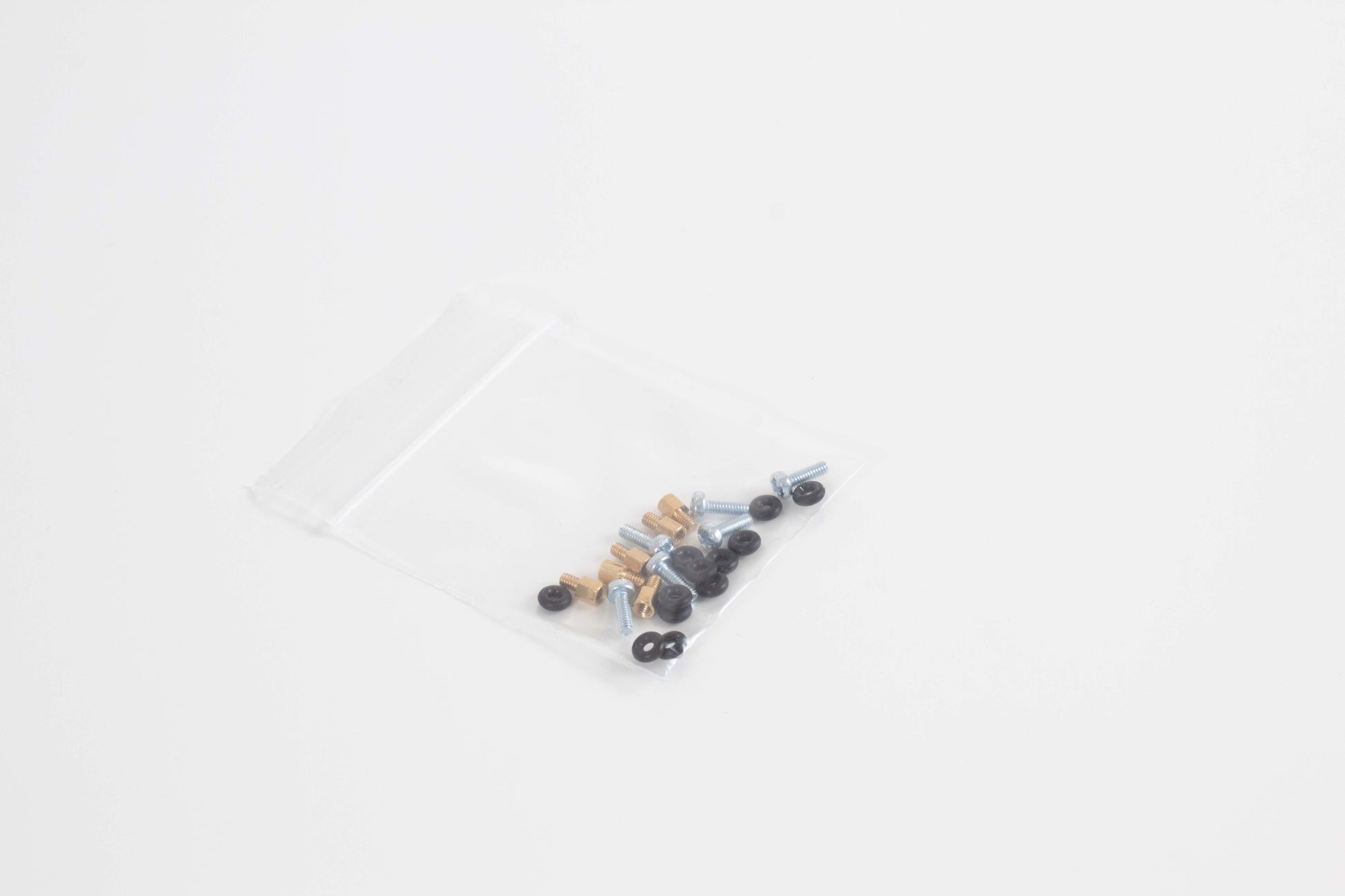

INCLUDED PARTS
INCLUDED PARTS
- x6 PCB Screws, M2x6mm
- x6 Standoffs, M2x3mm
- x12 O-Rings, (0.176" OD x 0.056" ID x 0.06" W, Dash # 003, 70A durometer)
GROUP BUY INFO & UPDATES
GROUP BUY INFO & UPDATES
Group Buy Period: August 25 - October 6, 2025
Estimated Fulfillment: Q1 2026
Disclaimer:
This item is part of a Group Buy (pre-order), and is not stocked. Payment is collected at the time of purchase. Due to the nature of Group Buys, orders are non-returnable except in the rare case of a defective item. Cancellations are accepted only within 2 hours of placing your order.
Once the Group Buy period ends, production will begin. Orders will be fulfilled in the order they were received. The fulfillment timelines listed below are estimates only and may be subject to delays. By placing an order, you acknowledge and accept these terms. For more information on Group Buys, please visit our FAQ.
Please DO NOT mix Group Buy and In-Stock items in the same order.
Estimated Fulfillment Timeline:
- 50 orders reached: Ships ~8-10 weeks after Group Buy closes.
- 100 orders reached: Ships ~10-14 weeks after Group Buy closes.
- 100+ orders reached: Ships ~14+ weeks after Group Buy closes.
Extras:
If you miss the Group Buy, a limited number of extras will be available once all orders have been fulfilled. If demand is high enough, this product may later become an in-stock item, but this is not guaranteed.
Updates:
- Group Buy is closed and production begins. (10/06/25)
- Group Buy opened. (08/25/25)
KEYBOARD COMPATIBILITY
KEYBOARD COMPATIBILITY
This item will work with any size of either our NULL Series 1.0 or 2.0 keyboards.
