NULL65 V1 PCB - GROUP BUY

$45.00 USD

Sale Sold out

Layout ANSI ISO

Quantity

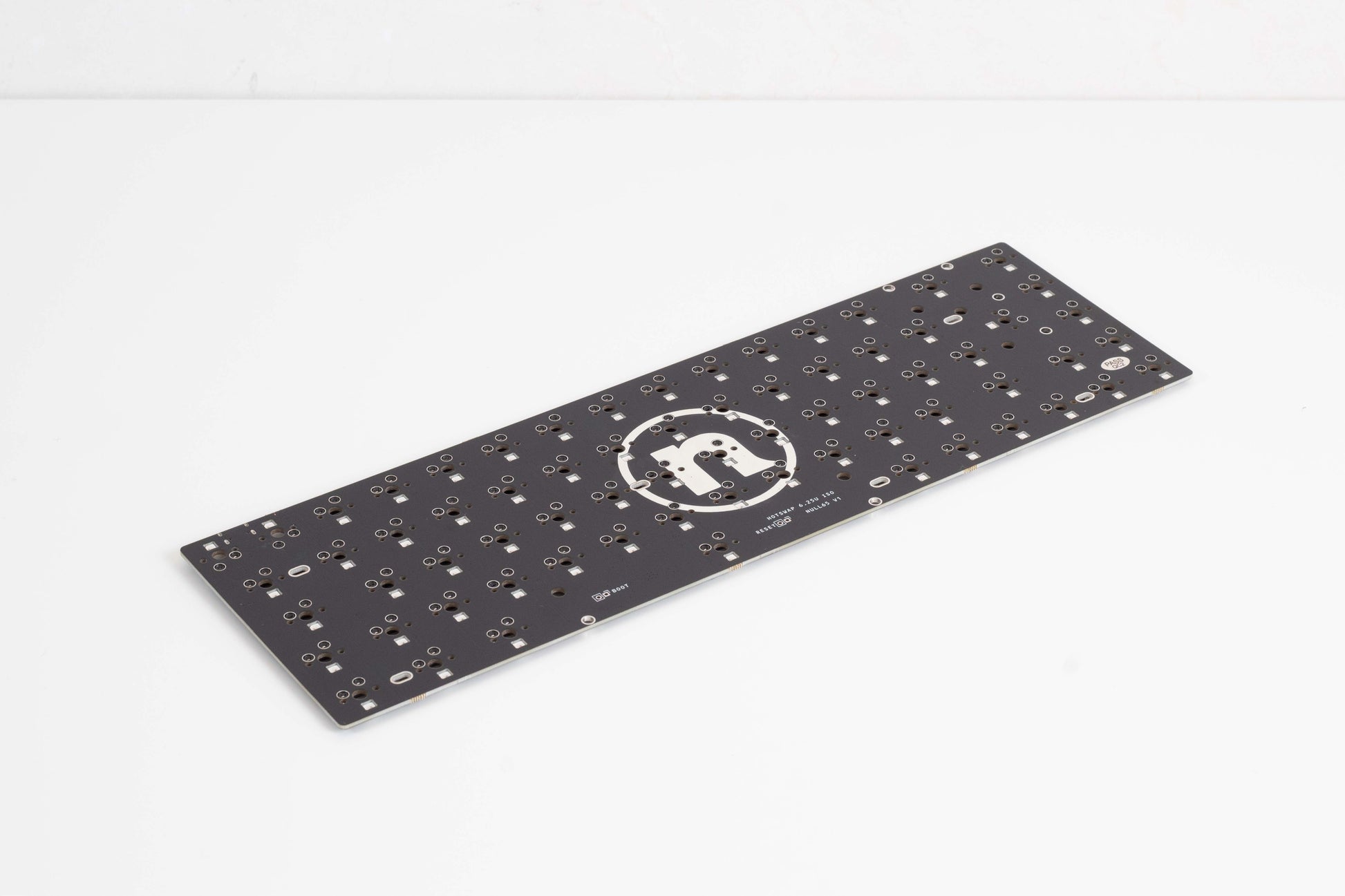

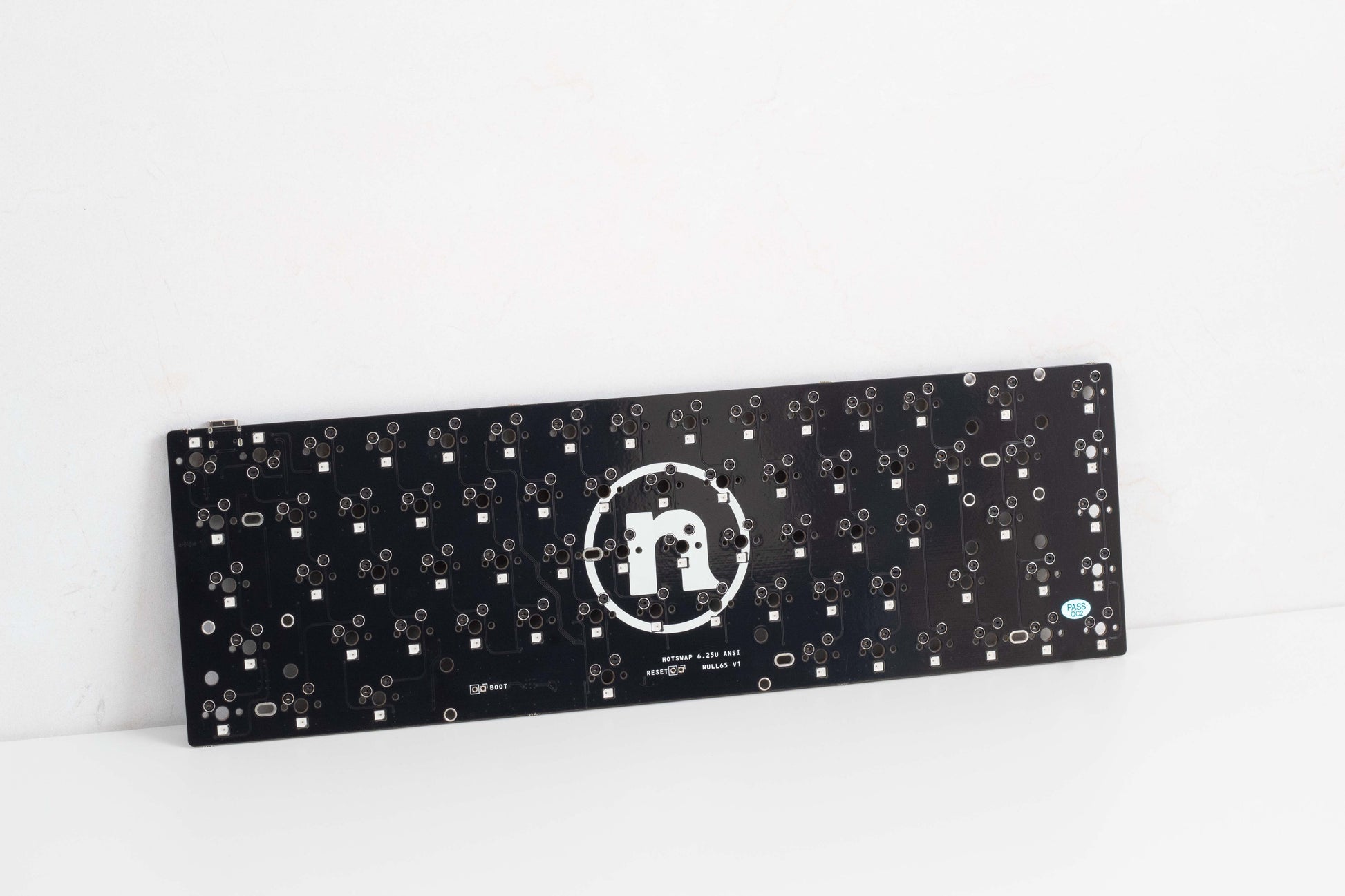

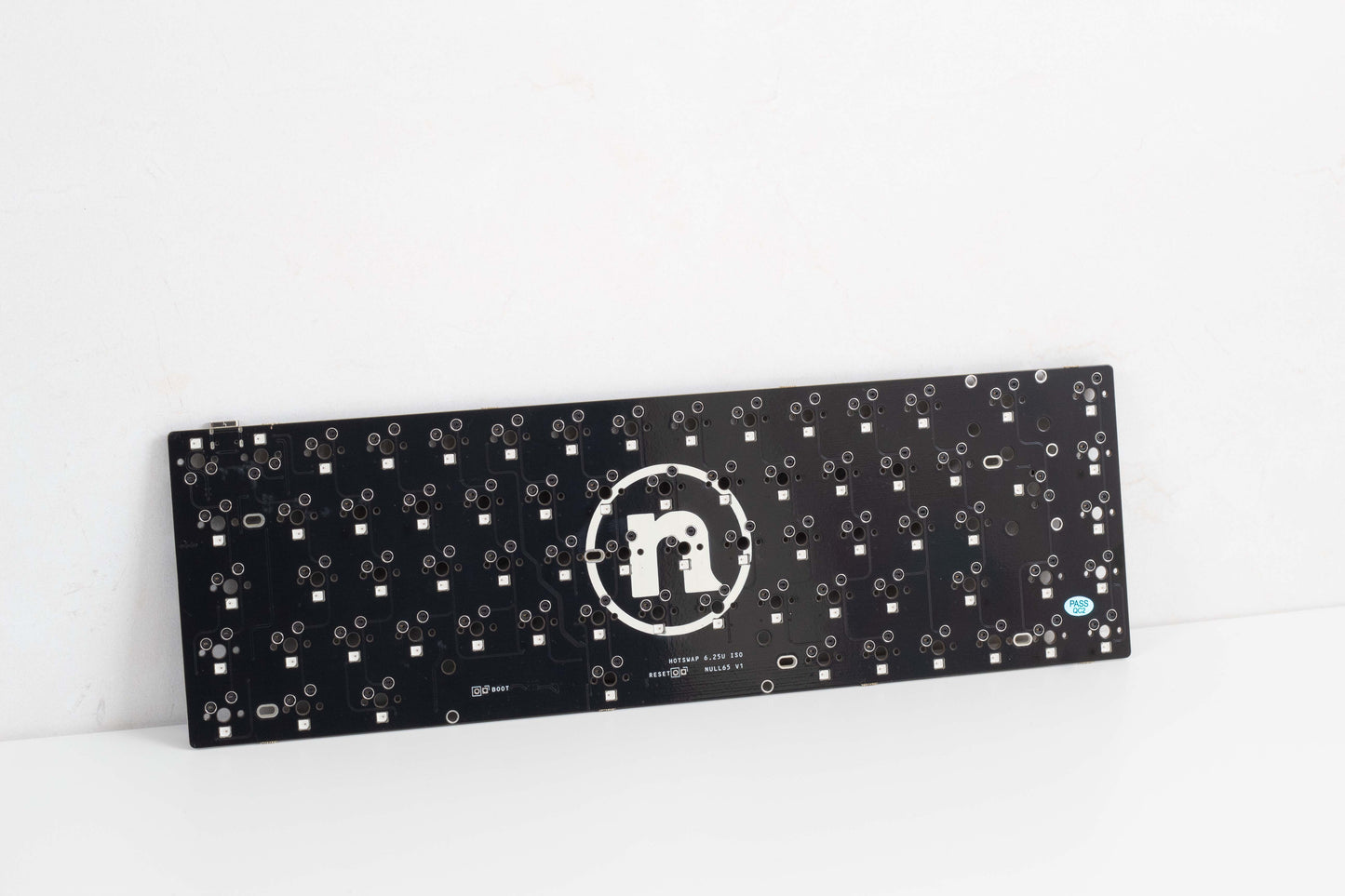

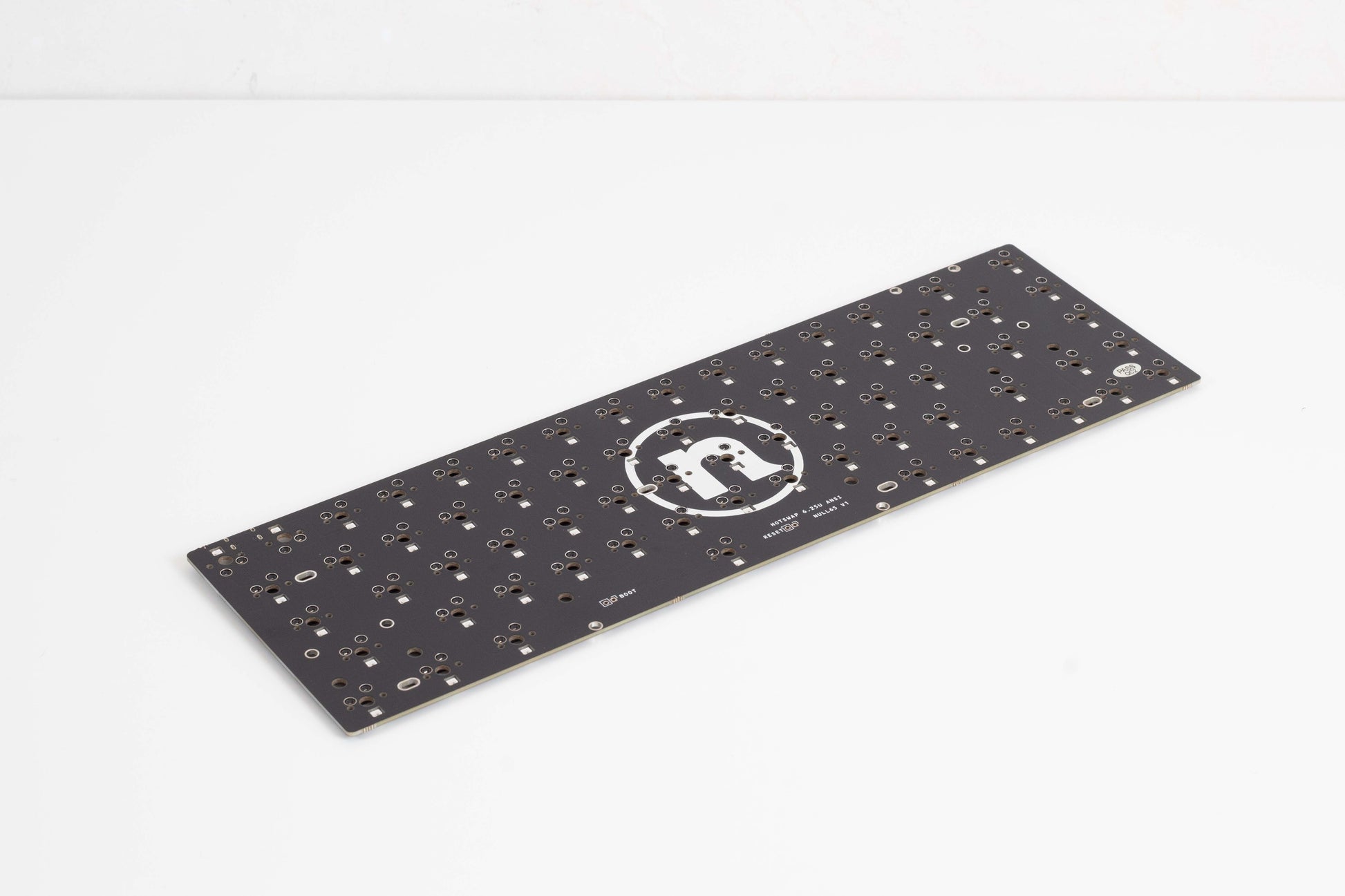

This hotswap PCB is designed for the NULL65 barebones keyboard kit and is available in both ANSI and ISO layouts. Designed by Quark.Works for Null Design Co.

Designed with user-friendliness in mind, this 1.6mm thick PCB comes tested and pre-flashed with firmware, so you can start typing right out of the box. For those who want more advanced customization, it fully supports QMK for deep-level programming and flexibility. And if you’re somewhere in the middle, VIA offers an intuitive way to remap keys, tweak layouts, and customize the LEDs without needing to dive into code.

Features:

Onboard USB-C Connector: Wired-only mode ensures a safe and reliable experience—no swollen batteries, lag, or misplaced receivers.
Per-Key RGB LEDs
Kailh Gen 2 hotswap sockets: Improved over Gen 1 with better durability and reliability; rated for 6,000+ cycles.
No soldering required: Thanks to the pre-soldered hotswap sockets, easily swap MX-style switches at any time.
Layouts: Standard ANSI and ISO layout support. See barebones kit product page for keymaps.
ESD protection circuit: Helps safeguard components during handling.
QMK and VIA compatible: Fully programmable with user-friendly interface.
Compatibility: Compatible with all NULL65 cases and switch plates.
Version: V1 - Initial product release.

This part is included with all keyboard kits, but is also available here as a replacement or extra.

DIMENSIONS & WEIGHT

11.9 in Length x 3.73 in Width x 0.06 in Thick (30.3 x 9.5 x 0.16 cm)
0.26 lbs (117 g)

INCLUDED PARTS

x1 Hotswap PCB, 1.6mm thick

CARE

Always hold the PCB by the edges to avoid damaging components or connectors. Make sure to avoid flexing. Do not bend or twist the PCB when installing it into your case. Be gentle while inserting sockets into the board, if you have purchased a hotswap-compatible variant. Insert the switches straight and firmly—do not force or rock them.

Avoid any exposure to liquids or high humidity. Moisture can damage the PCB and cause malfunction. While rare, static discharge can harm electronics. Touch a metal object before handling the PCB to reduce risk.

Dust only with air. If you have to clean your PCB, use a can of compressed air or a soft brush. Do not use water, alcohol, or cleaning sprays. Please do not attempt to remove components or modify the board.

Use standard USB-C power. Always connect to a computer or USB power source rated for keyboard use. Use only the firmware that is outlined in the instructions for each keyboard kit. Do not try to flash custom firmware. Improper flashing can brick the PCB.

GROUP BUY INFO & UPDATES

Group Buy Period: August 25 - October 6, 2025

Estimated Fulfillment: Q1 2026

Disclaimer:

This item is part of a Group Buy (pre-order), and is not stocked. Payment is collected at the time of purchase. Due to the nature of Group Buys, orders are non-returnable except in the rare case of a defective item. Cancellations are accepted only within 2 hours of placing your order.

Once the Group Buy period ends, production will begin. Orders will be fulfilled in the order they were received. The fulfillment timelines listed below are estimates only and may be subject to delays. By placing an order, you acknowledge and accept these terms. For more information on Group Buys, please visit our FAQ.

Please DO NOT mix Group Buy and In-Stock items in the same order.

Estimated Fulfillment Timeline:

50 orders reached: Ships ~8-10 weeks after Group Buy closes.
100 orders reached: Ships ~10-14 weeks after Group Buy closes.
100+ orders reached: Ships ~14+ weeks after Group Buy closes.

Extras:

If you miss the Group Buy, a limited number of extras will be available once all orders have been fulfilled. If demand is high enough, this product may later become an in-stock item, but this is not guaranteed.
