This hotswap PCB was designed by Quark.Works specifically for the NULL65 Series 2.0 Barebones Keyboard Kit and is available in both ANSI and ISO layouts.

Designed with user-friendliness in mind, this 1.6mm thick PCB comes tested and pre-flashed with firmware, so you can start typing right out of the box. For those who want more advanced customization, it fully supports QMK for deep-level programming and flexibility. And if you’re somewhere in the middle, VIA offers an intuitive way to remap keys, tweak layouts, and customize the LEDs without needing to dive into code.

Features:

Onboard USB-C Connector: Wired-only operation ensures a safe and reliable experience—no swollen batteries, wireless latency (lag), or misplaced receivers.
Switch Compatibility: MX-style mechanical switches (3-pin and 5-pin supported). Magnetic/Hall Effect (HE) switches are not compatible.
Per-Key RGB Lighting: Fully customizable RGB LEDs for every key.
Kailh Gen 2 Hotswap Sockets: Improved over Gen 1 with better durability and reliability; rated for 6,000+ insertion cycles.
No Soldering Required: Pre-soldered hotswap sockets allow switches to be installed and replaced at any time.

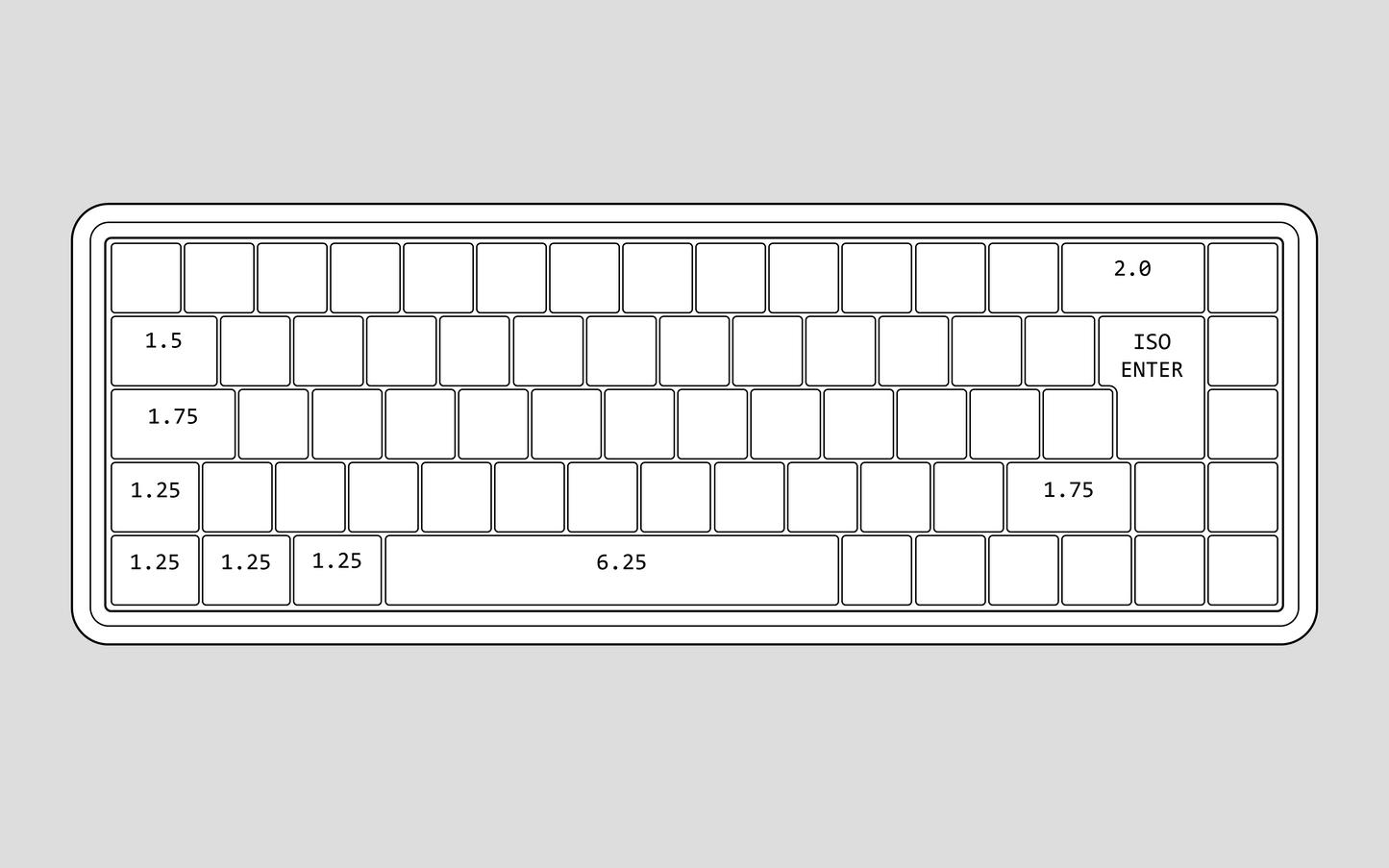

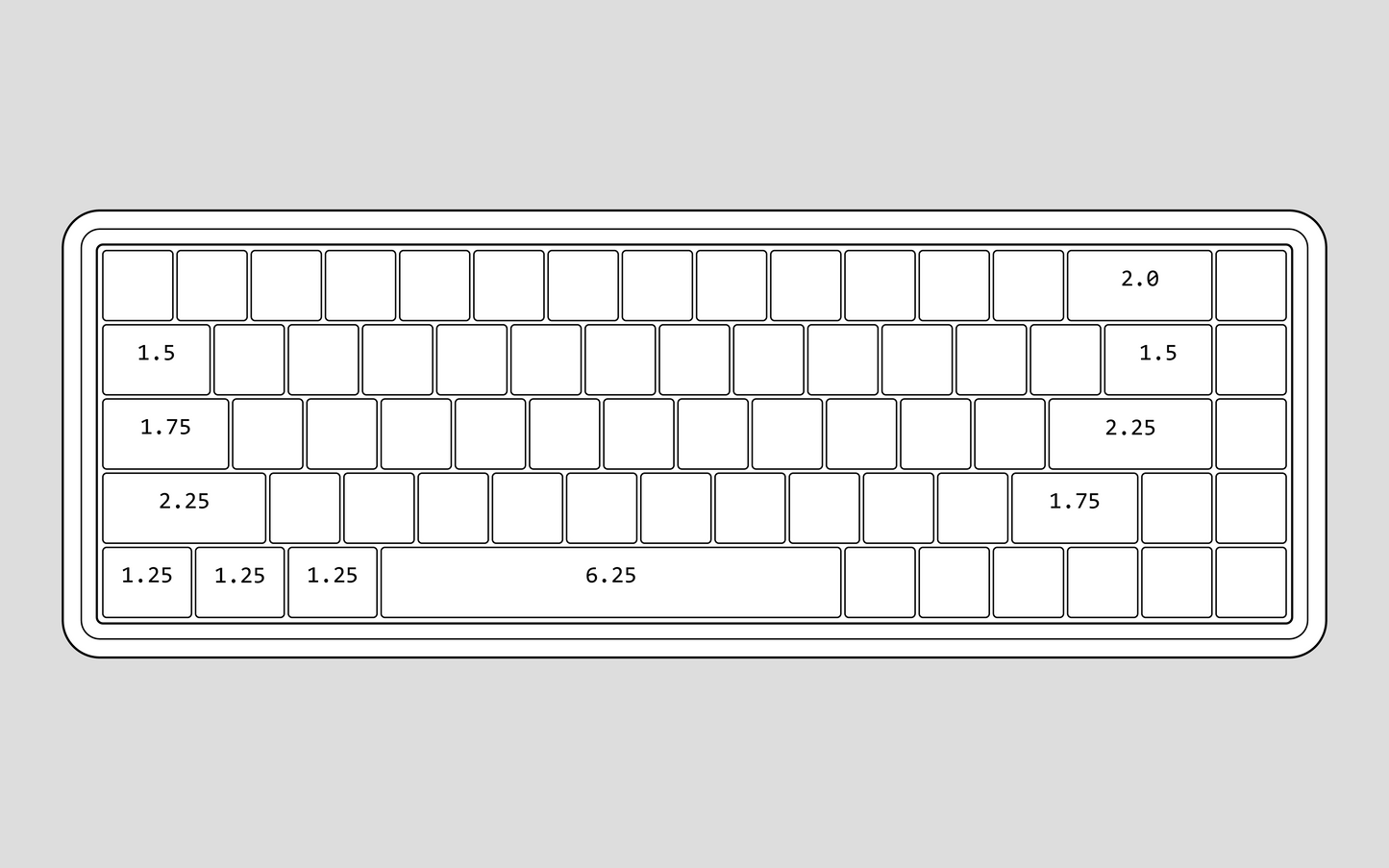

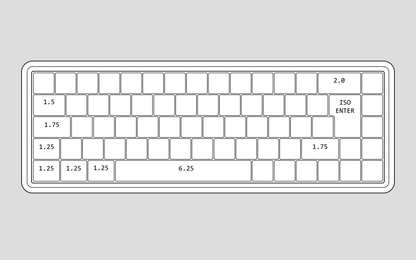

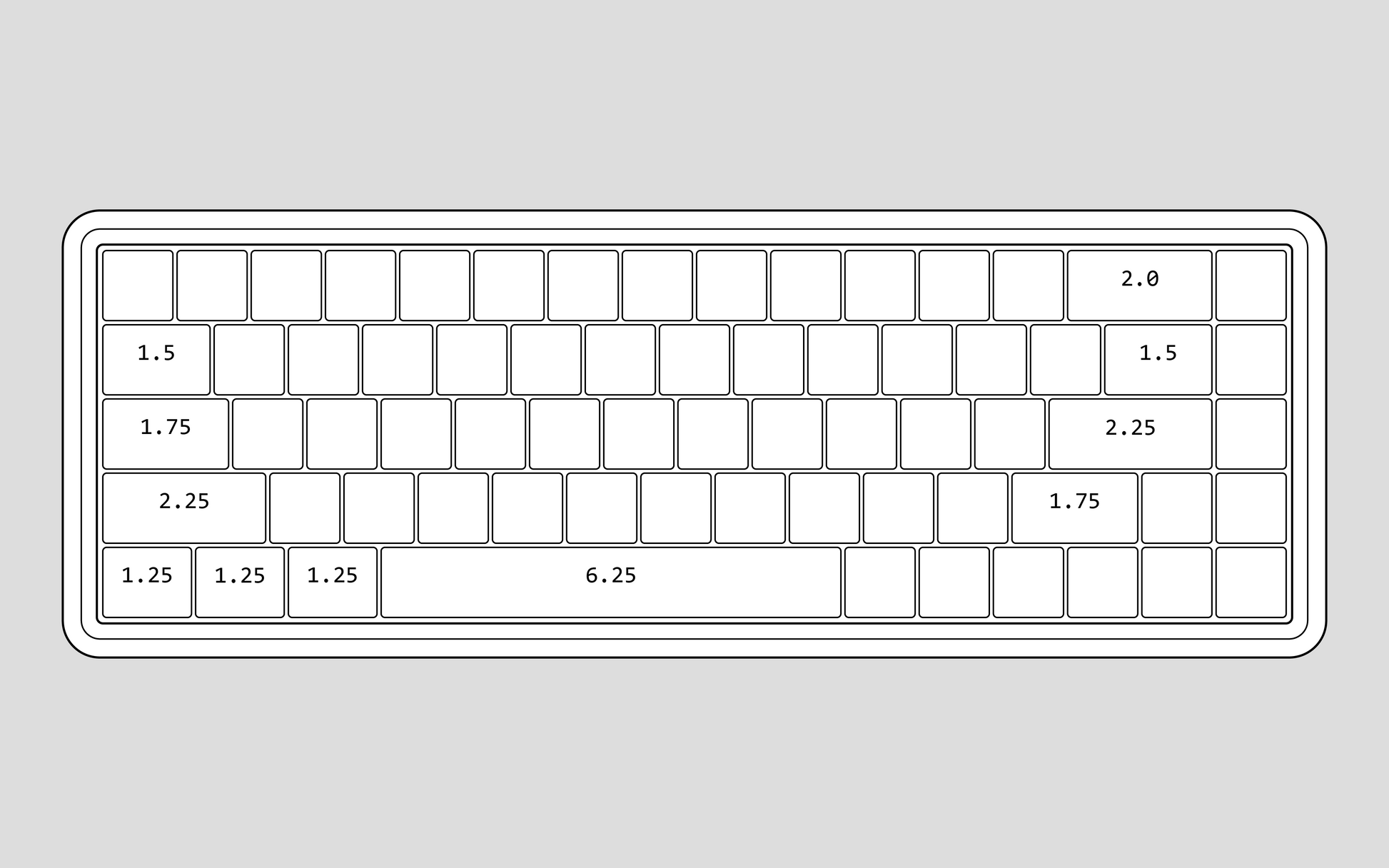

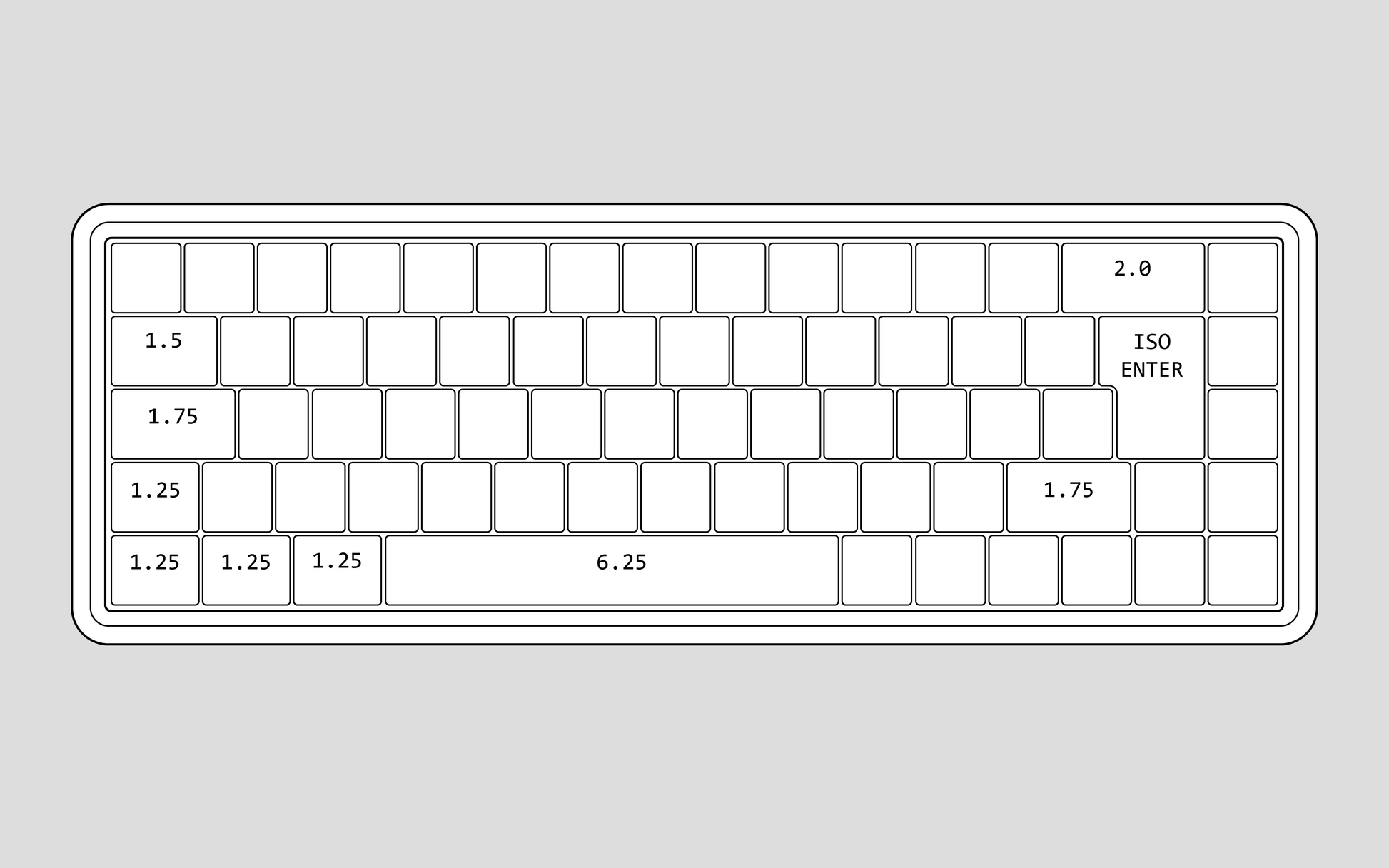

Layout Support: Standard ANSI and ISO layouts.
ESD Protection Circuit: Helps protect sensitive components from electrostatic discharge during handling.
QMK and VIA Compatible: Fully programmable with user-friendly interfaces and extensive customization options.
Compatibility: Designed for all NULL65 cases and switch plates.
Version: V1 - Initial product release.

This part is included with all keyboard kits, but is also available here as a replacement or extra.

DIMENSIONS & WEIGHT

11.9 x 3.7 x 0.06 in (303 x 95 x 1.6 mm)
0.3 lb (117 g)

INCLUDED PARTS

x1 Hotswap PCB, 1.6mm thick

CARE

Always hold the PCB by the edges to avoid damaging components or connectors. Make sure to avoid flexing. Do not bend or twist the PCB when installing it into your case. Be gentle while inserting sockets into the board, if you have purchased a hotswap-compatible variant. Insert the switches straight and firmly—do not force or rock them.

Avoid any exposure to liquids or high humidity. Moisture can damage the PCB and cause malfunction. While rare, static discharge can harm electronics. Touch a metal object before handling the PCB to reduce risk.

Dust only with air. If you have to clean your PCB, use a can of compressed air or a soft brush. Do not use water, alcohol, or cleaning sprays. Please do not attempt to remove components or modify the board.

Use standard USB-C power. Always connect to a computer or USB power source rated for keyboard use. Use only the firmware that is outlined in the instructions for each keyboard kit. Do not try to flash custom firmware. Improper flashing can brick the PCB.
